High-Performance EtherCAT Coupler REC1

Short Description:

The Rtelligent REC1 Coupler is designed as a compact and modular I/O station for EtherCAT networks, delivering real-time performance and reliable signal integration for industrial automation applications. Ideal for machinery, assembly, and process control systems, it enables flexible I/O expansion while ensuring robust communication and module diagnostics.

Send email to us

Product Detail

Download

Product Tags

Product Introduction

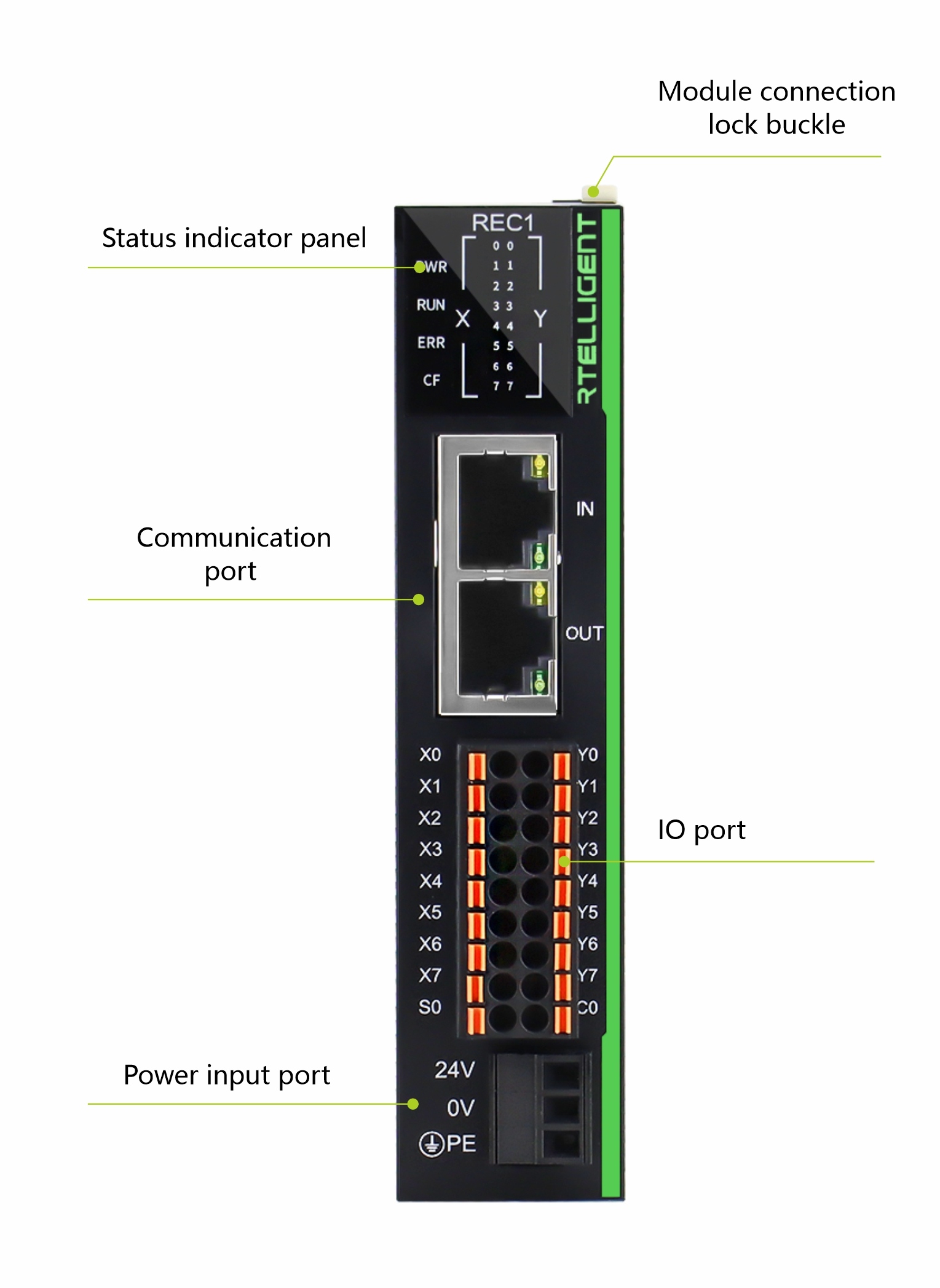

Connection

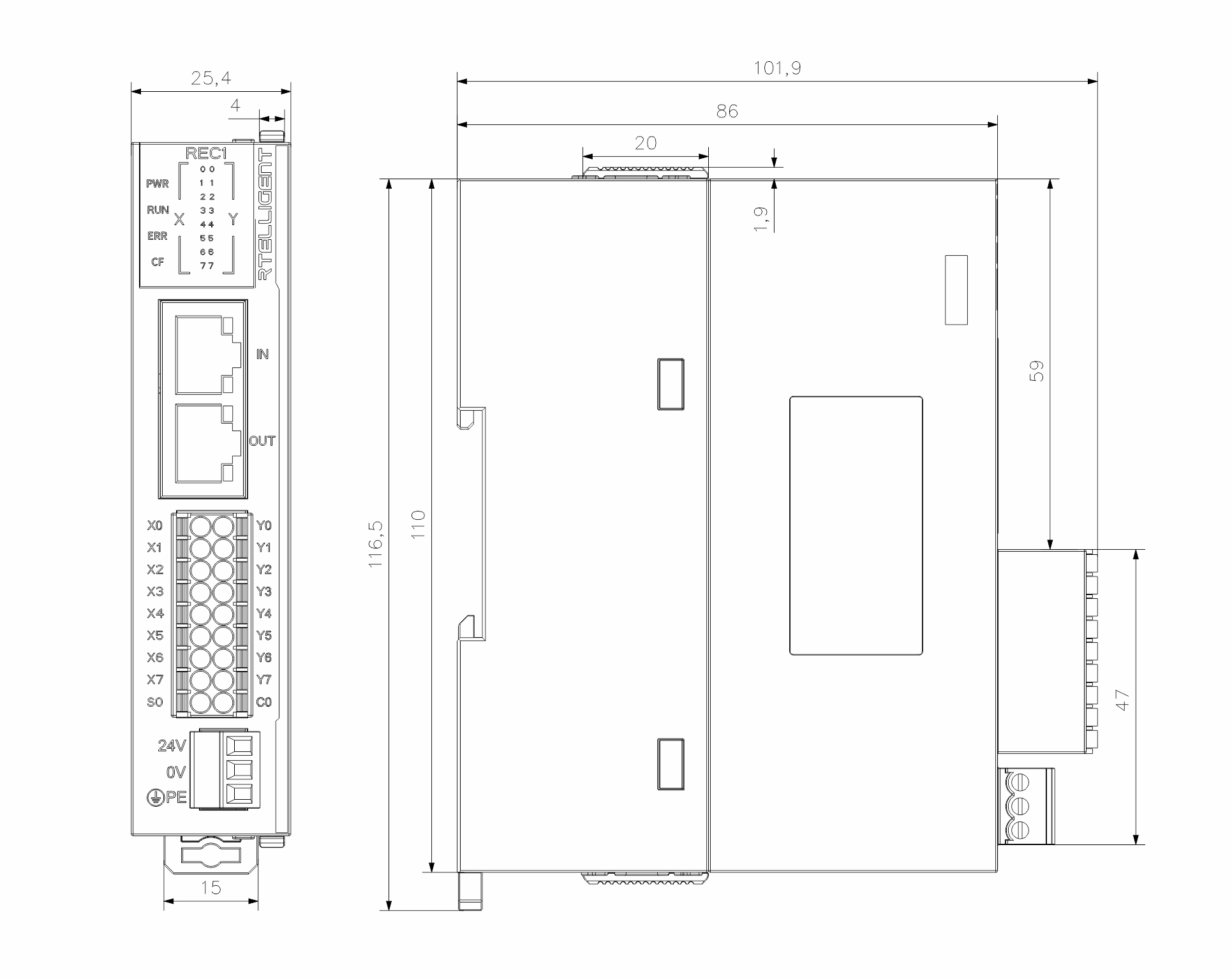

Size

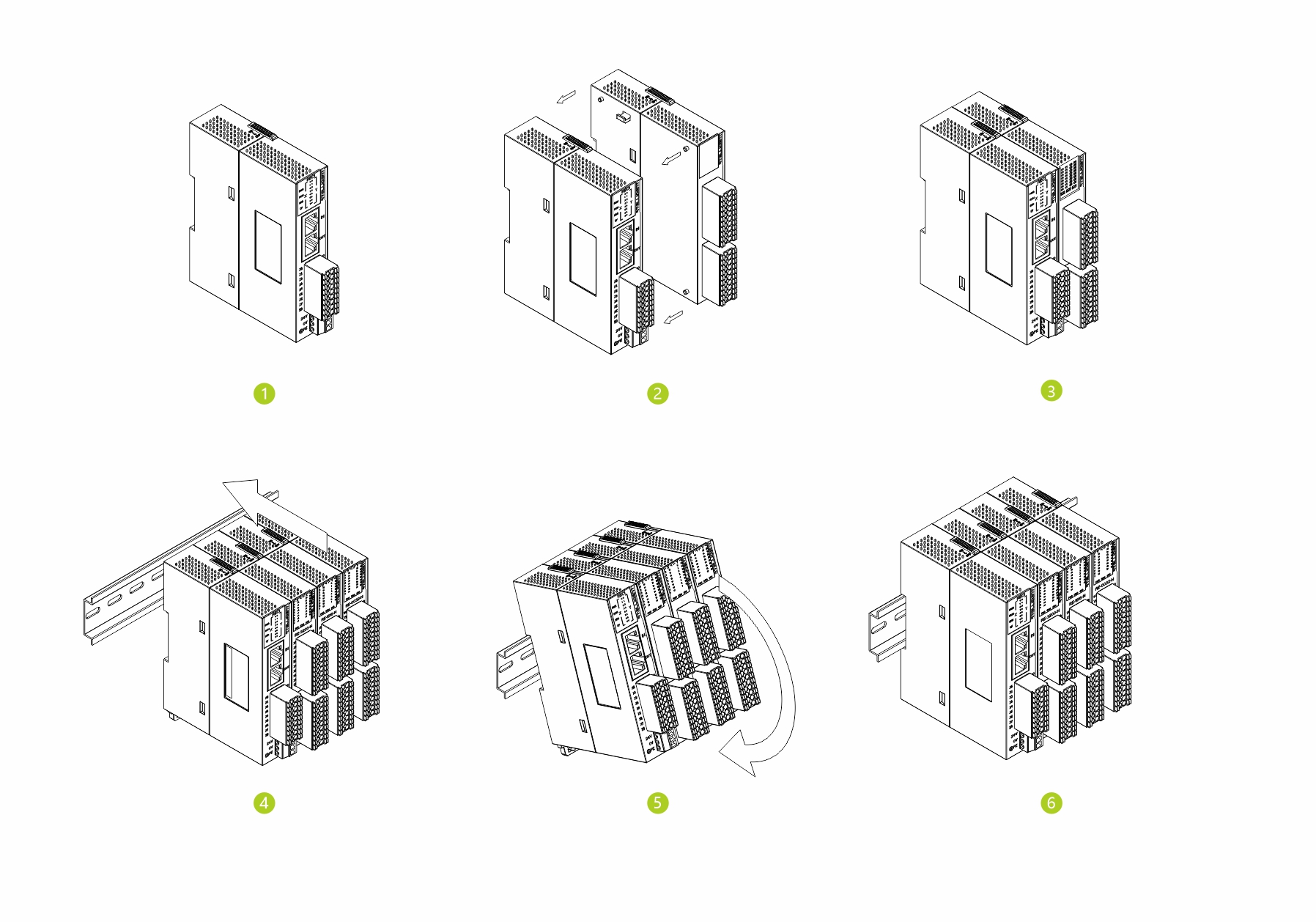

Installation steps

Key Features:

Supports the EtherCAT industrial bus protocol.
The REC1 coupler comes with 8 input channels and 8 output channels by default.
Supports expansion of up to 8 I/O modules (actual quantity and configuration are limited by the power consumption of each module.
Features EtherCAT watchdog protection and module disconnection protection, with alarm output and module online status indication.

Electrical Specifications:

Operating voltage: 24 VDC (input voltage range: 20 V–28 V).
X0–X7: bipolar inputs; Y0–Y7: NPN common-emitter (sinking) outputs.
Digital I/O terminal voltage range: 18 V–30 V.
Default digital input filter: 2 ms.
