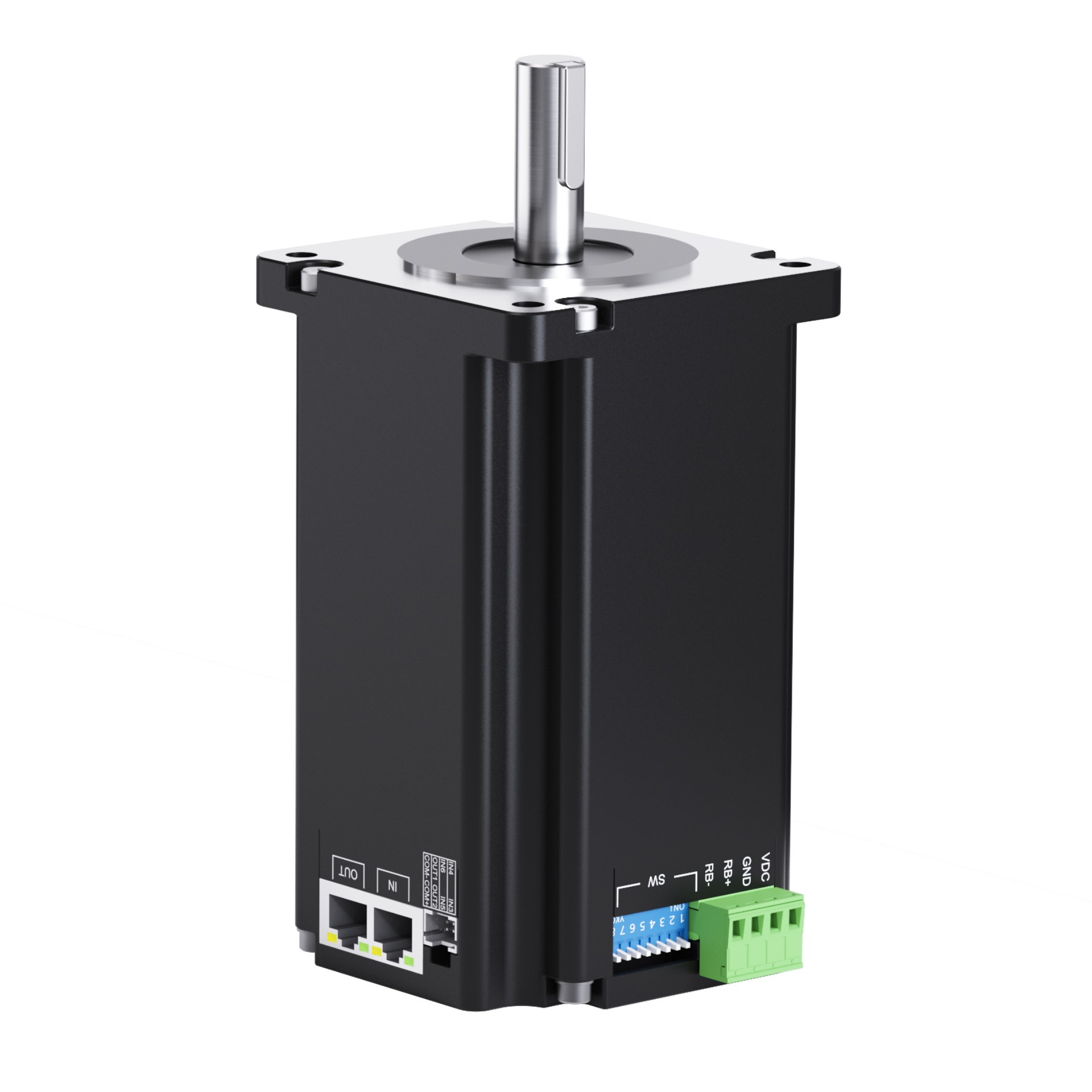

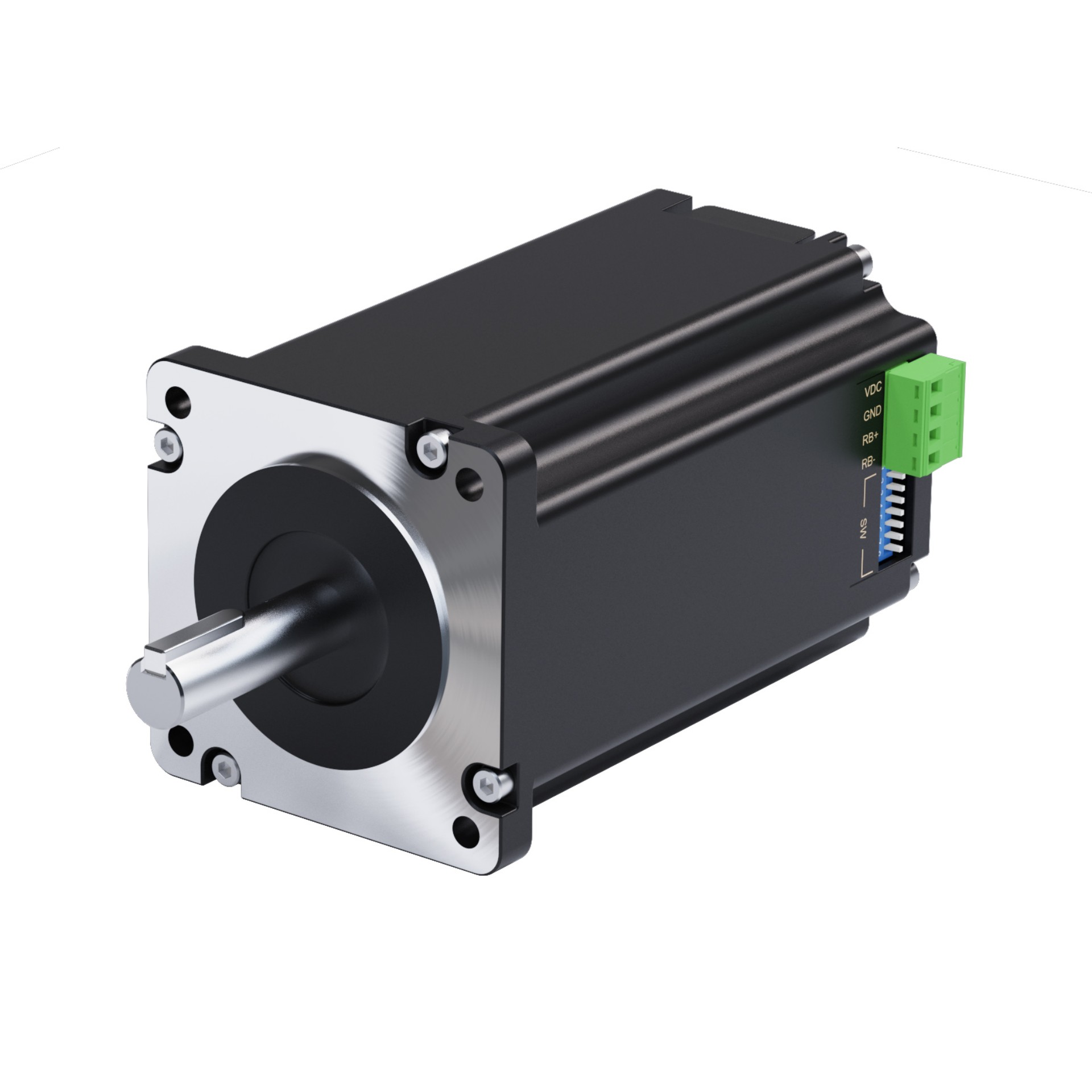

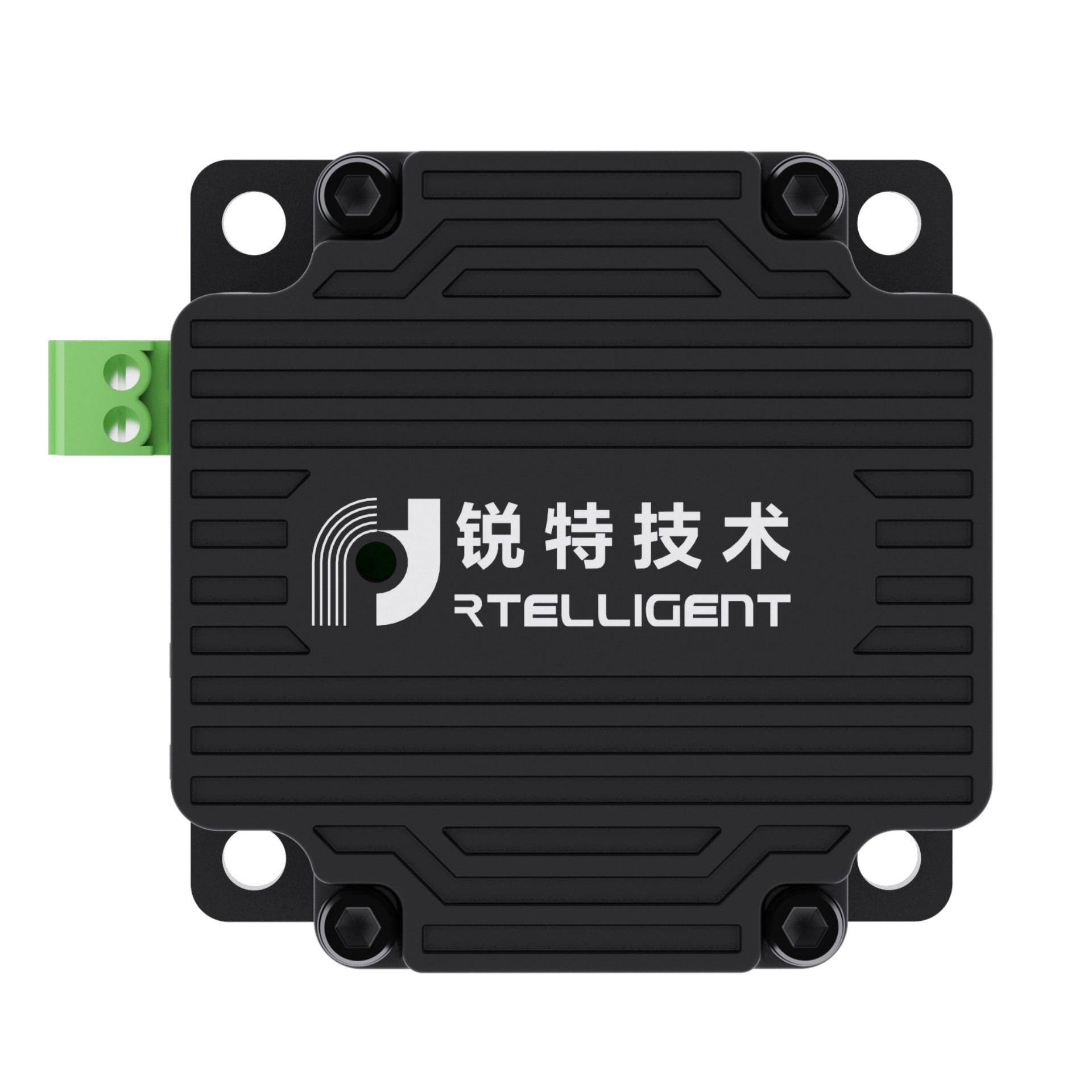

Integrated Drive Motor IR42 /IT42 Series

IR/IT series is the integrated universal stepper motor developed by Rtelligent, which is the perfect combination of motor, encoder and driver. The product has a variety of control methods, which not only saves installation space, but also convenient wiring and saves labor cost.

· Pulse control mode: pul & dir, double pulse, orthogonal pulse

· Communication control mode: RS485/EtherCAT/CANopen

· Communication Settings: 5-bit DIP – 31 axis addresses; 2-bit DIP – 4-speed baud rate

· Motion direction setting: 1-bit dip switch sets the motor running direction

· Control signal: 5V or 24V single-ended input, common anode connection

Integrated Motors are made with high performance drives and motors, and deliver high power in a compact high quality package that can help machine builders cut down on mounting space and cables, increase reliability, eliminate motor wiring time, save labor costs, at a lower system cost.
