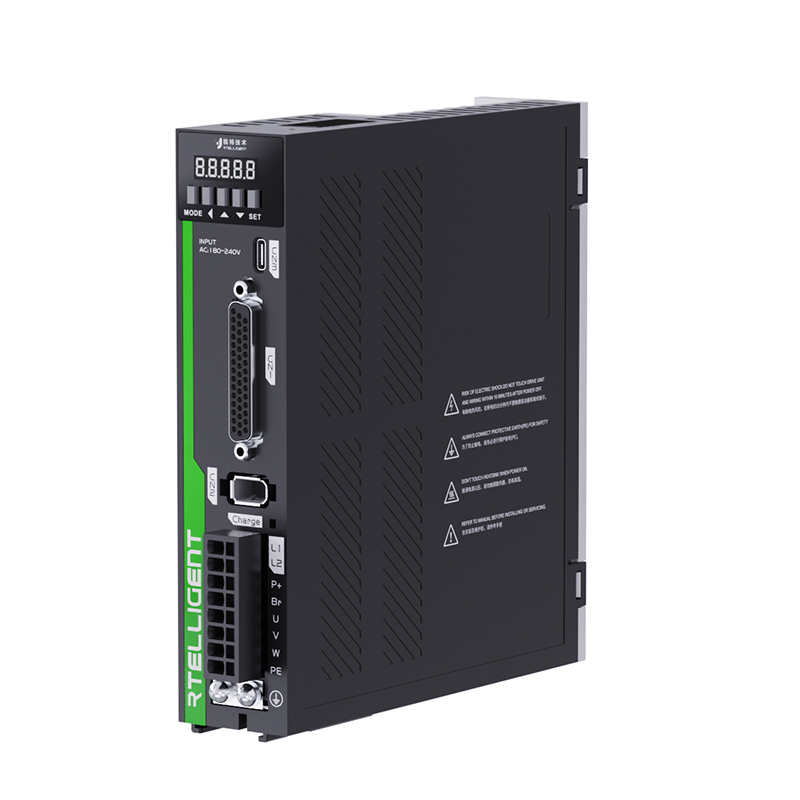

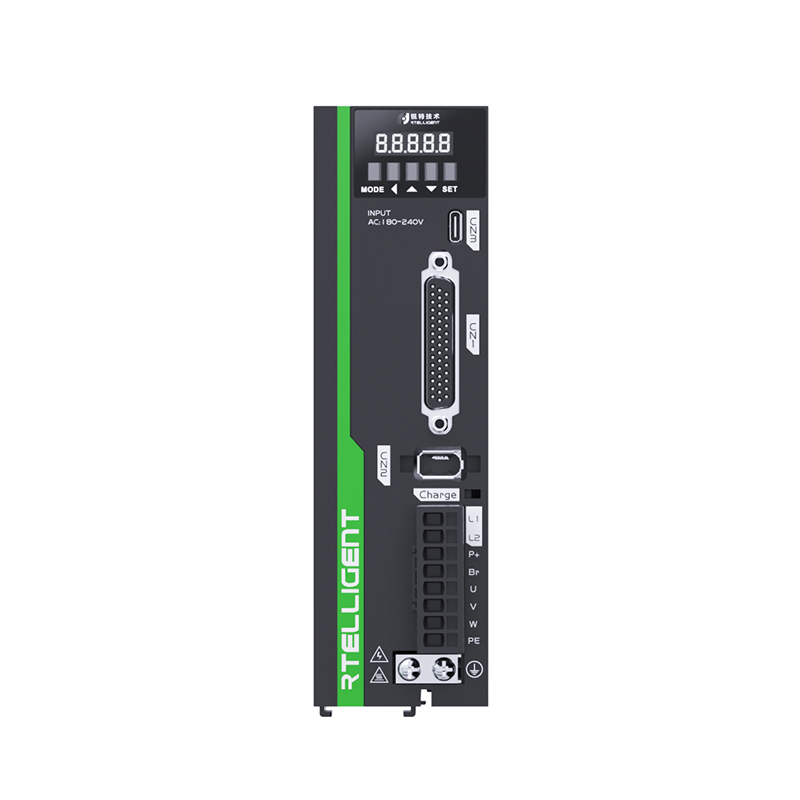

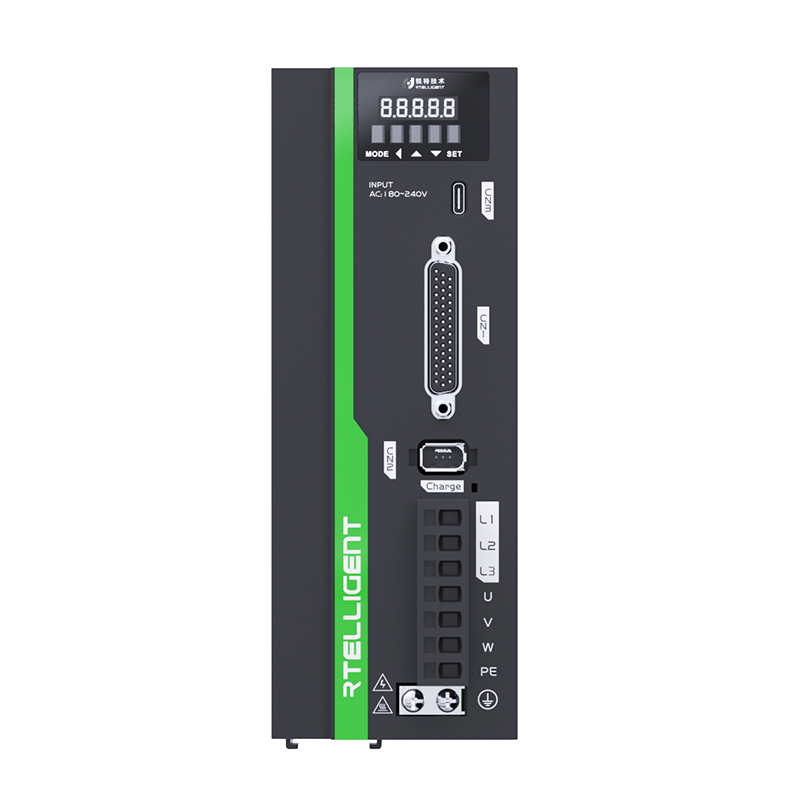

New 6th-Generation of High-Performance AC Servo Drive R6L028/R6L042/R6L076/R6L120

Short Description:

Based on an ARM+FPGA architecture and powered by the advanced R-AI 2.0 algorithm, RtelligentR6 Series delivers superior performance in high-end applications. Standard features include analog control and frequency division output, with support for various fieldbus protocols, achieving a 3kHz velocity loop bandwidth—a significant enhancement over the previous series. It is the ideal choice for high-end automation equipment industries.

Send email to us

Product Detail

Download

Product Tags

Product Introduction

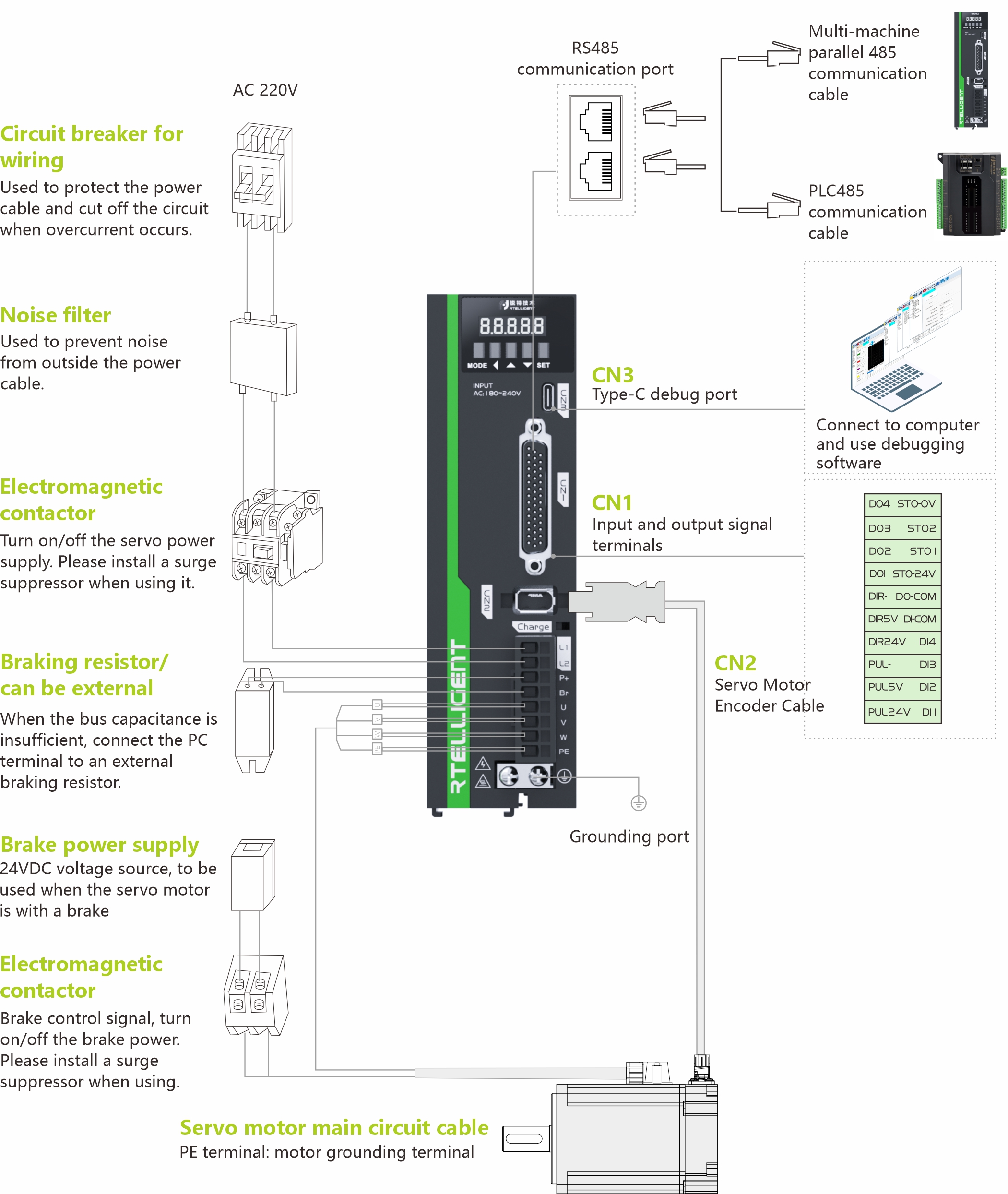

Connection

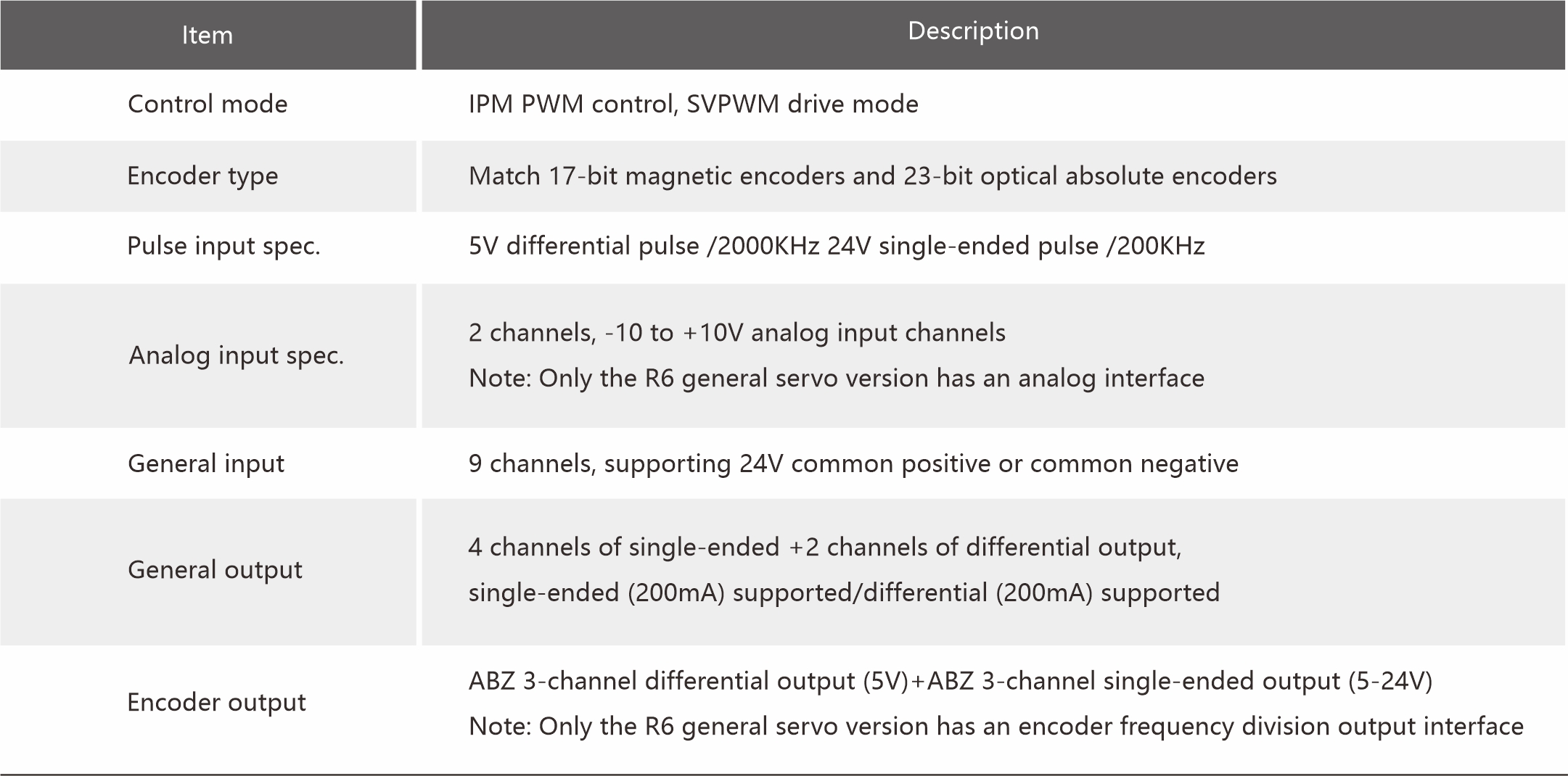

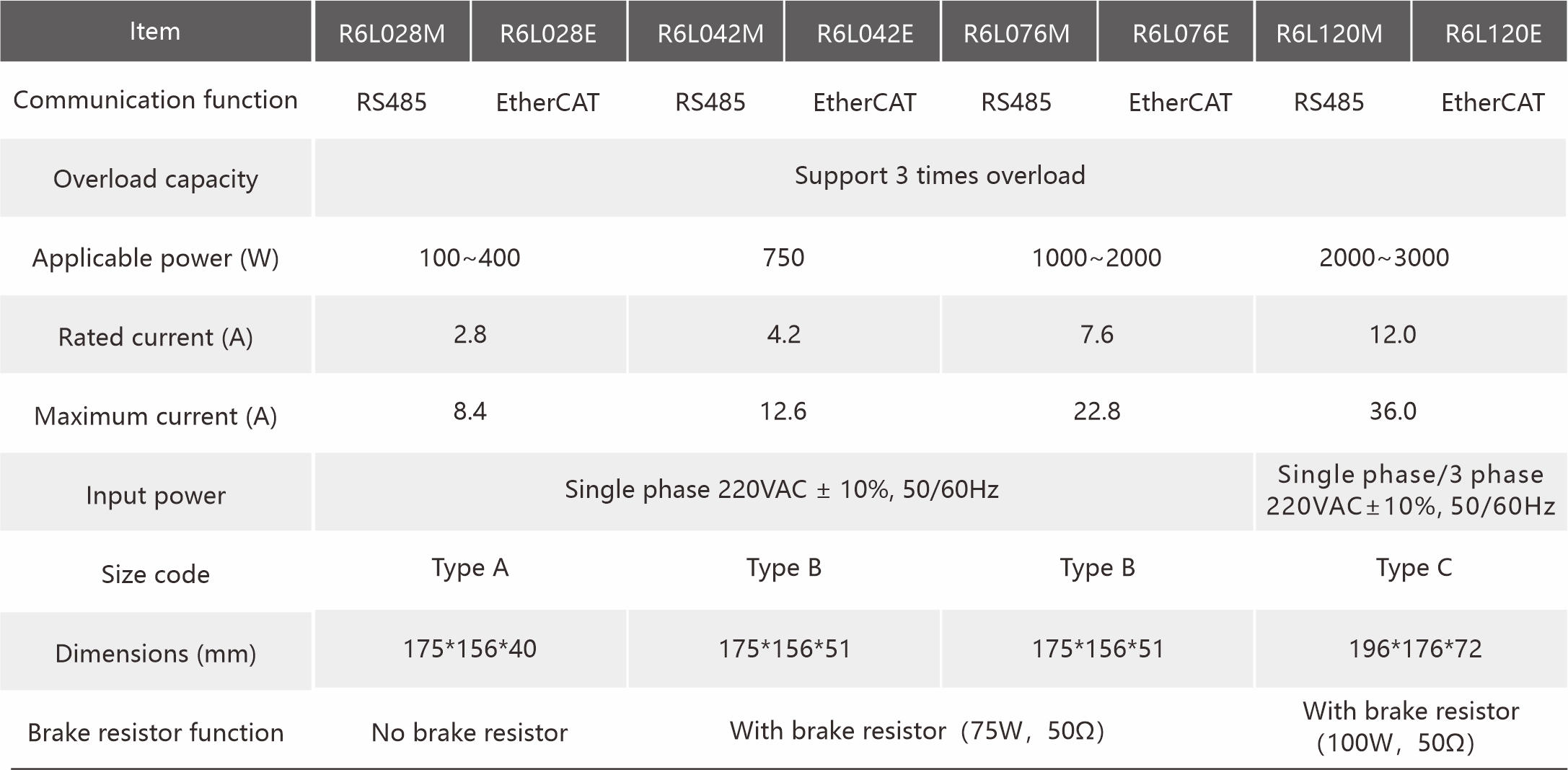

product details

●Supports EtherCAT, Modbus RS485, Pulse+Direction, Analog Control
●Easy debugging
●STO (Safe Torque Off) function available
●Motors with 23-bits magnetic/optical encoder available
●Supports 8MHz differential/frequency-divided output for superior high-frequency performance.
●Power rating from 100W up to 3000W
The Rtelligent R6L series offers 64× higher resolution compared to conventional 17-bit (131,072) encoders, achieving unparalleled positioning accuracy. It delivers faster command tracking and markedly reduced settling time, empowering machinery to accelerate operations and boost productivity Featuring a high-performance ARM+FPGA dual-chip architecture with a 250 μs synchronization cycle, this solution delivers superior performance for interpolation-demanding applications. With native support for all industrial fieldbuses, STO safety assured, and auto tuning, it’s the ultimate servo upgrade for precision-driven industries.
