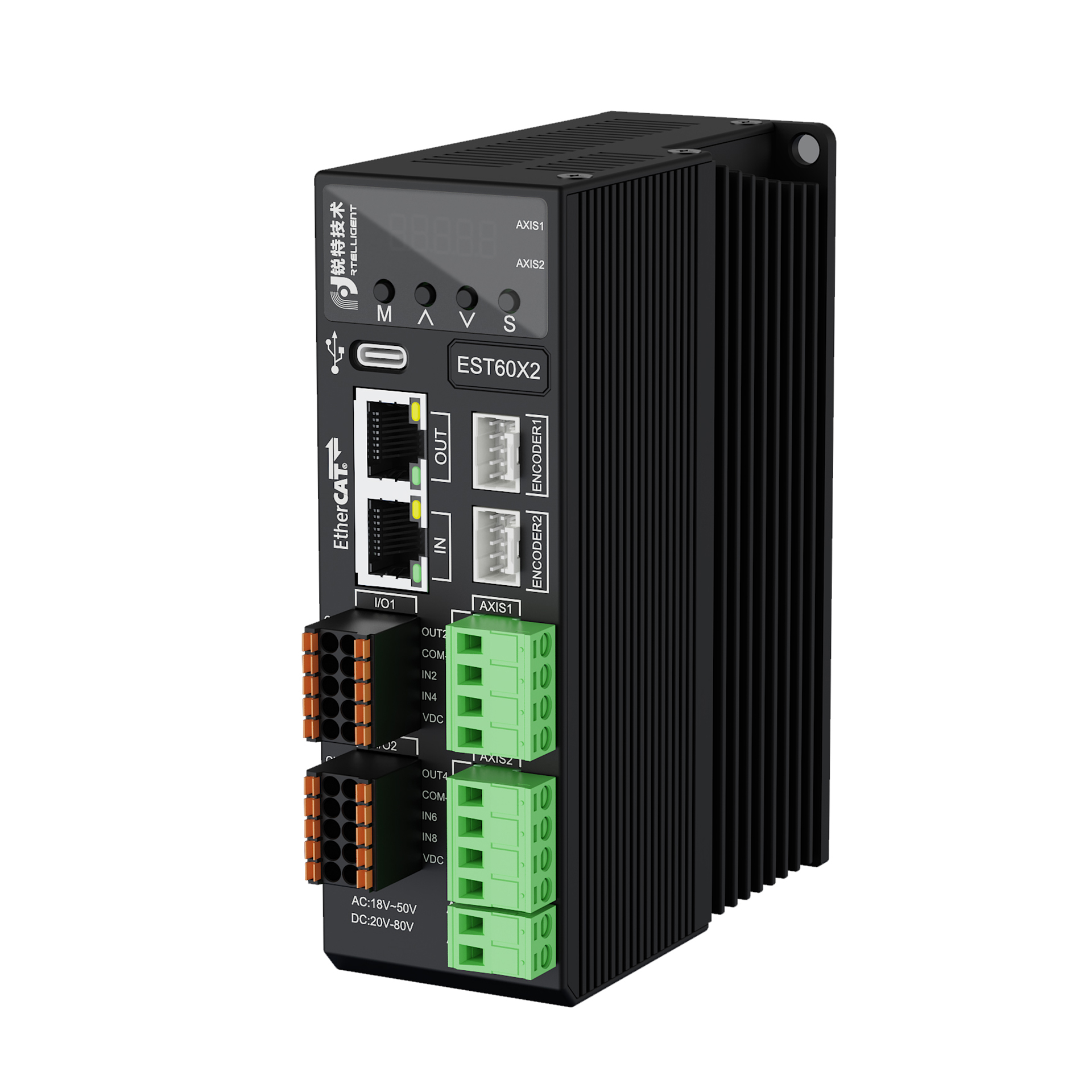

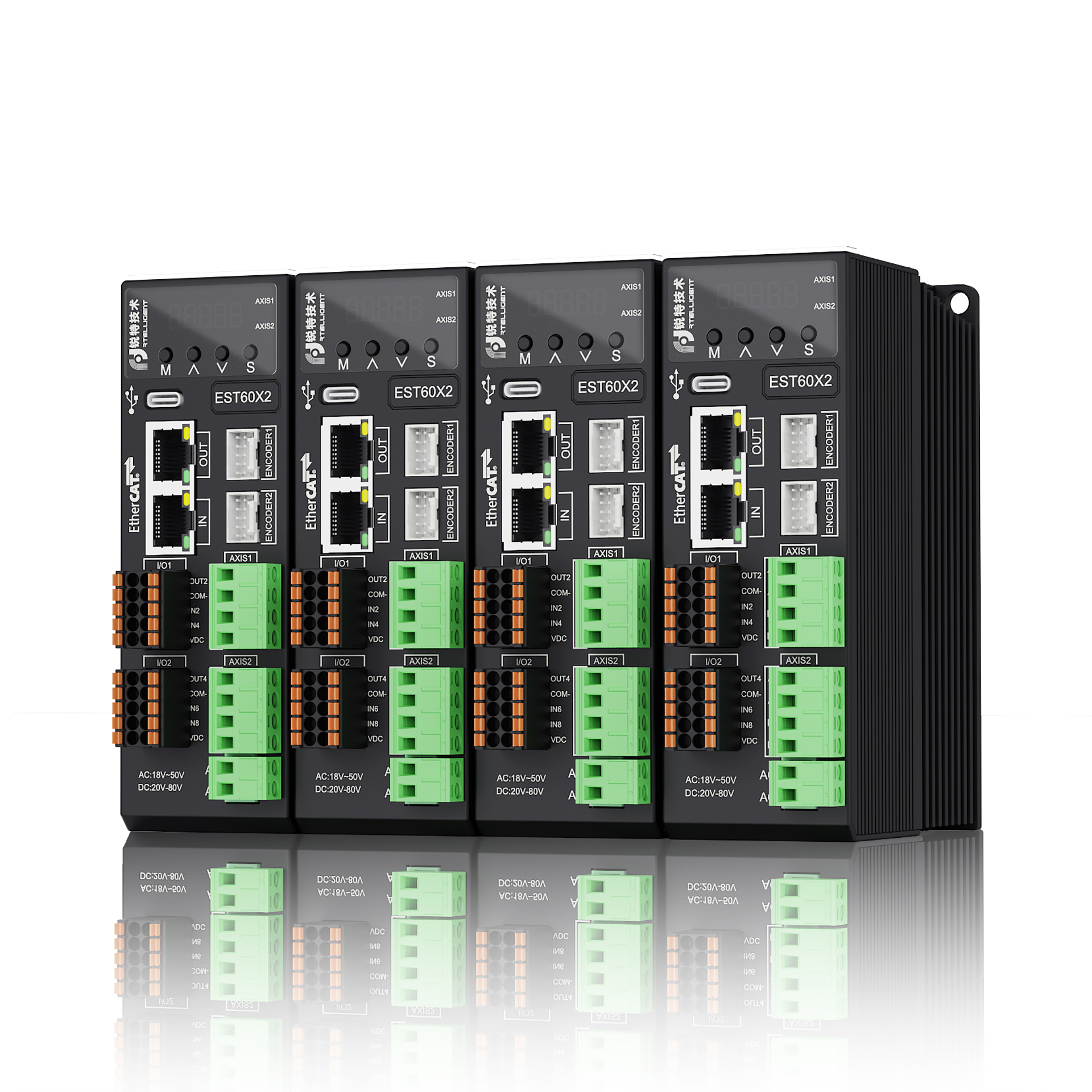

Elevate your automation performance with the Rtelligent EST60X2, a revolutionary dual-axis bus stepper drive engineered for seamless integration and peak efficiency. Designed for motors up to 60mm, the EST60X2
supports CoE (CANopen over EtherCAT) and EtherNet/IP, complies with the CiA402 standard, and is compatible with various network topologies such as linear and ring. This new product delivers exceptional control and versatility in a compact form factor.
●Support CSP, CSV, PP, PV, and Homing modes;
● Minimum synchronization period: 100 μs;
● Brake port: Direct connection to brake;
● Five-digit digital tube display makes it more convenient to monitor and modify parameters.
●Control methods: Open-loop control, closed-loop control;
● Supported motor types: two-phase, three-phase;
The Rtelligent EST60X2: Where Power, Precision, and Protocol Flexibility Converge. Optimize Your Motion Control Today. Achieve ultra-smooth and synchronized motion with a remarkably low minimum sync cycle of just 100 microseconds.
