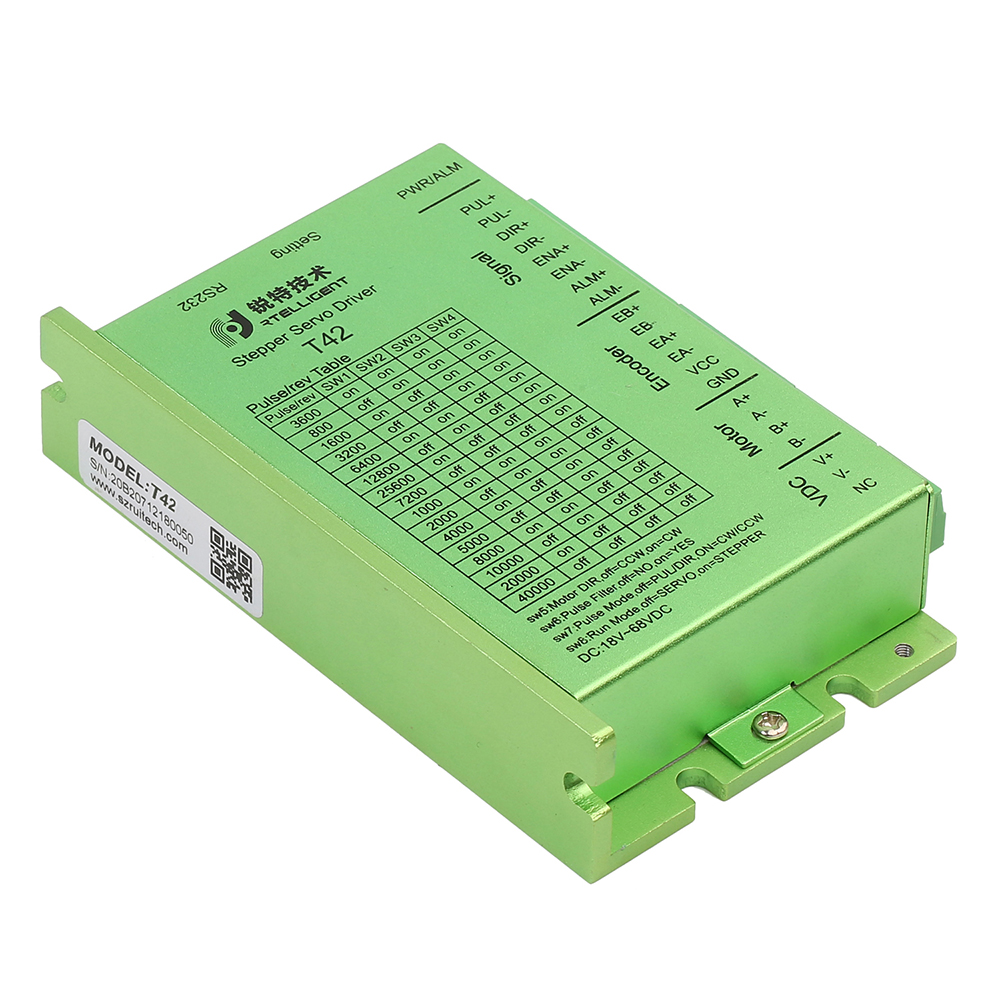

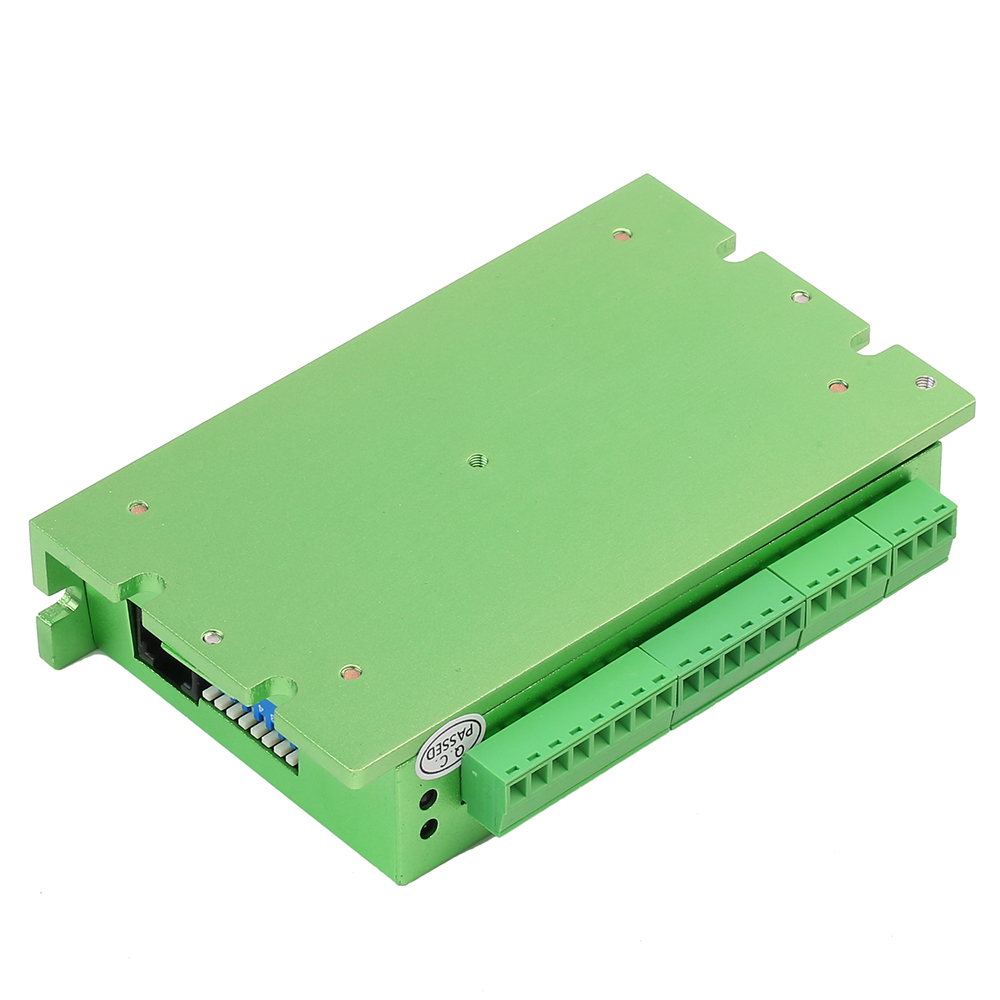

Pulse Control 2 Phase Closed Loop Stepper Drive T42

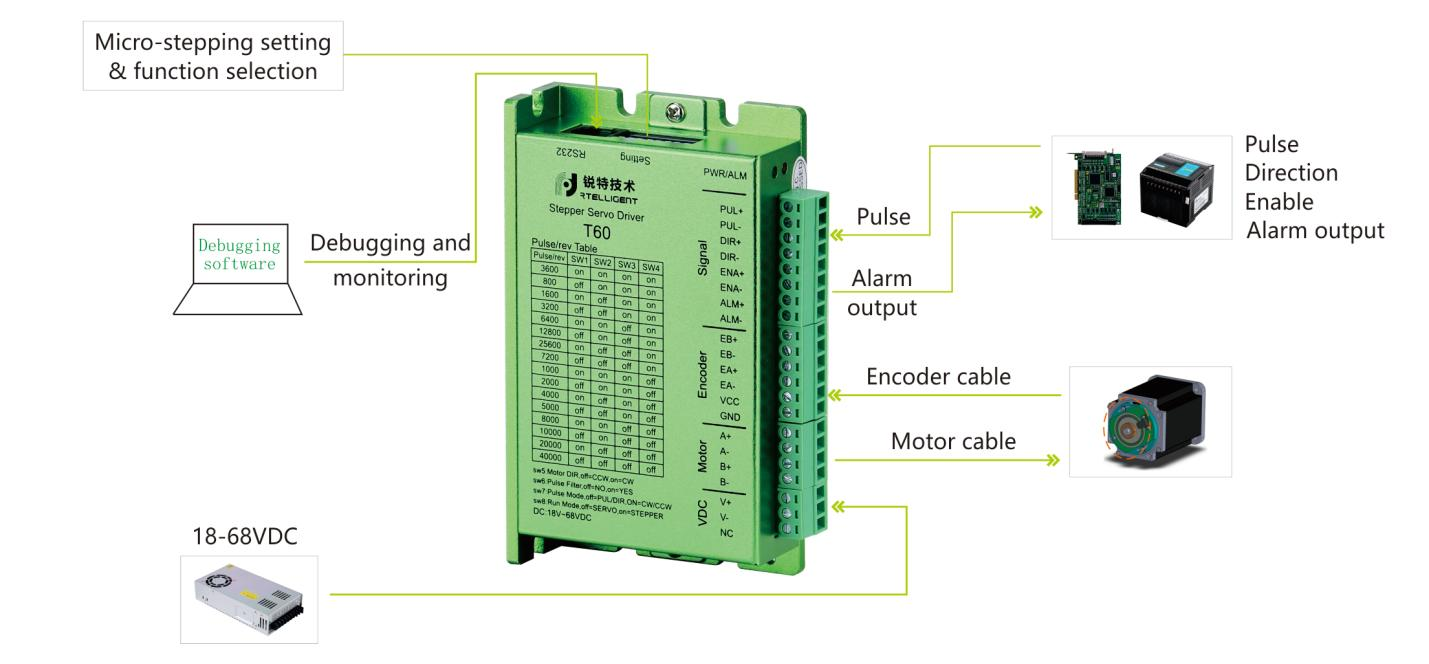

T60/T42 closed loop stepper drive, based on 32-bit DSP platform, built-in vector control technology and servo demodulation function,

combined with the feedback of closed-loop motor encoder, makes the closed loop stepper system has the characteristics of low noise,

low heat, no loss of step and higher application speed, which can improve the performance of intelligent equipment system in all aspects.

T60 matches closed- loop stepper motors below 60mm, and T42 matches closed- loop stepper motors below 42mm.  •

•l Pulse mode: PUL&DIR/CW&CCW

• Signal level: 3.3-24V compatible; serial resistance not required for the application of PLC.

• Power voltage: 18-68VDC, and 36 or 48V recommended.

• Typical applications: Auto-screwdriving machine, servo dispenser, wire-stripping machine, labeling machine, medical detector,

• electronic assembly equipment etc.
