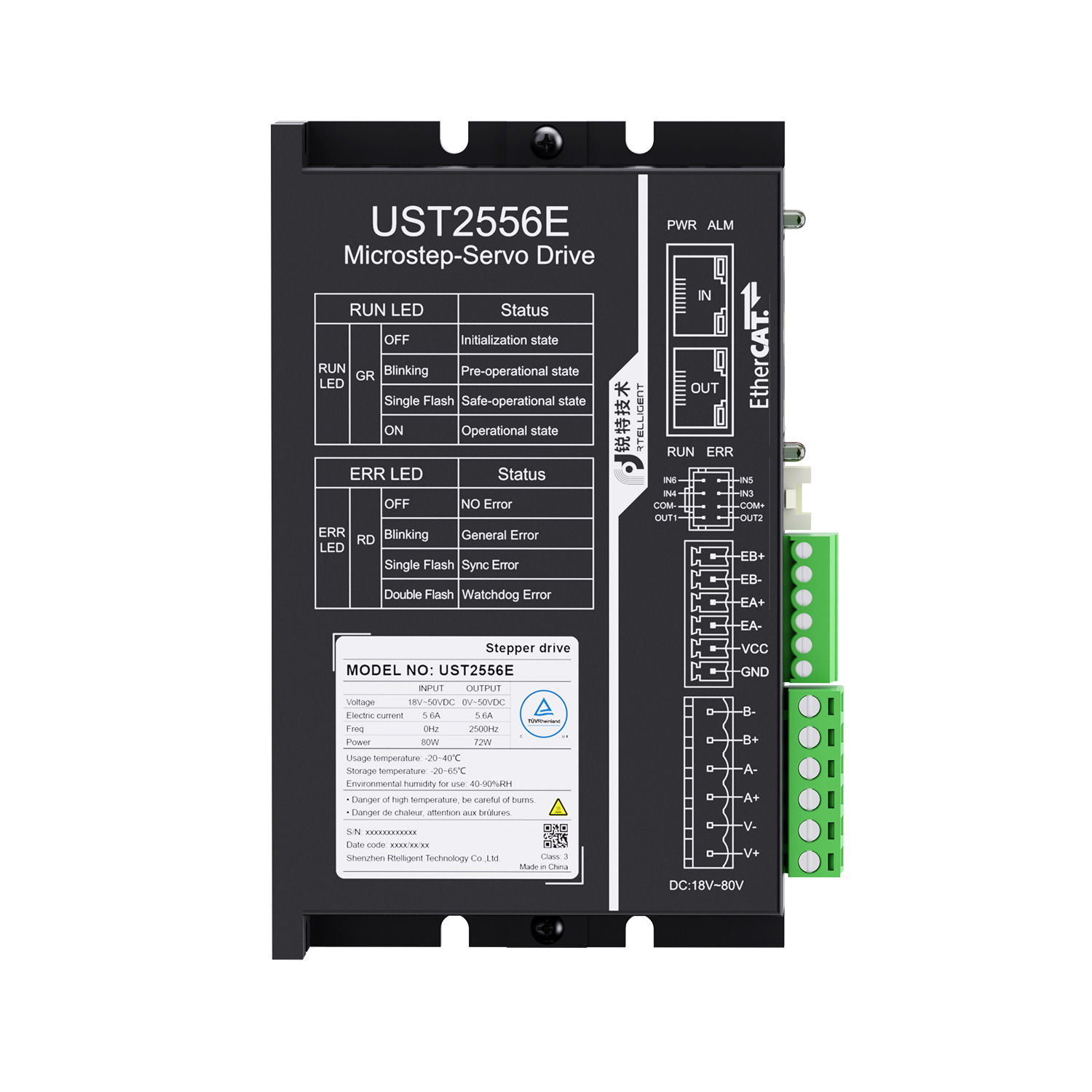

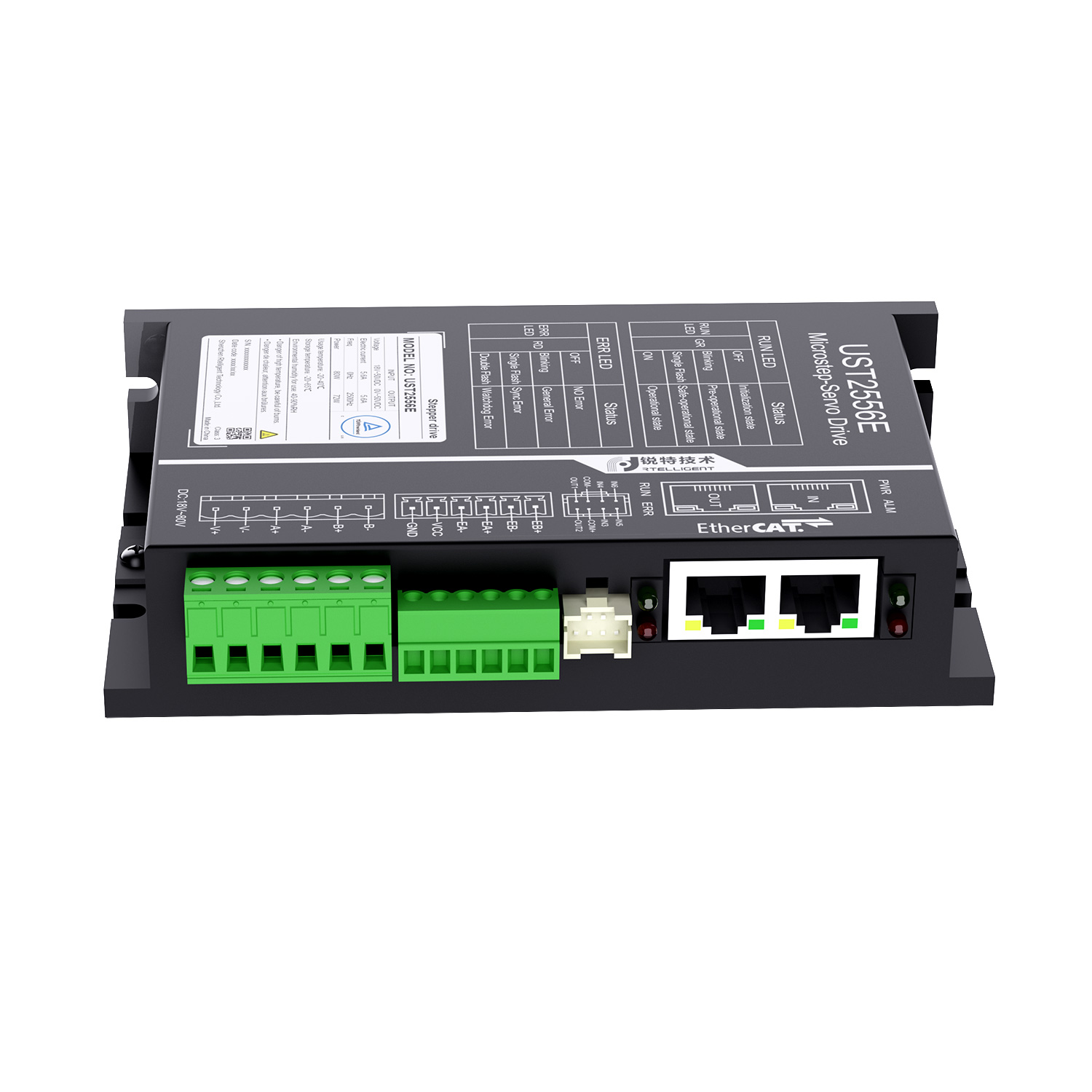

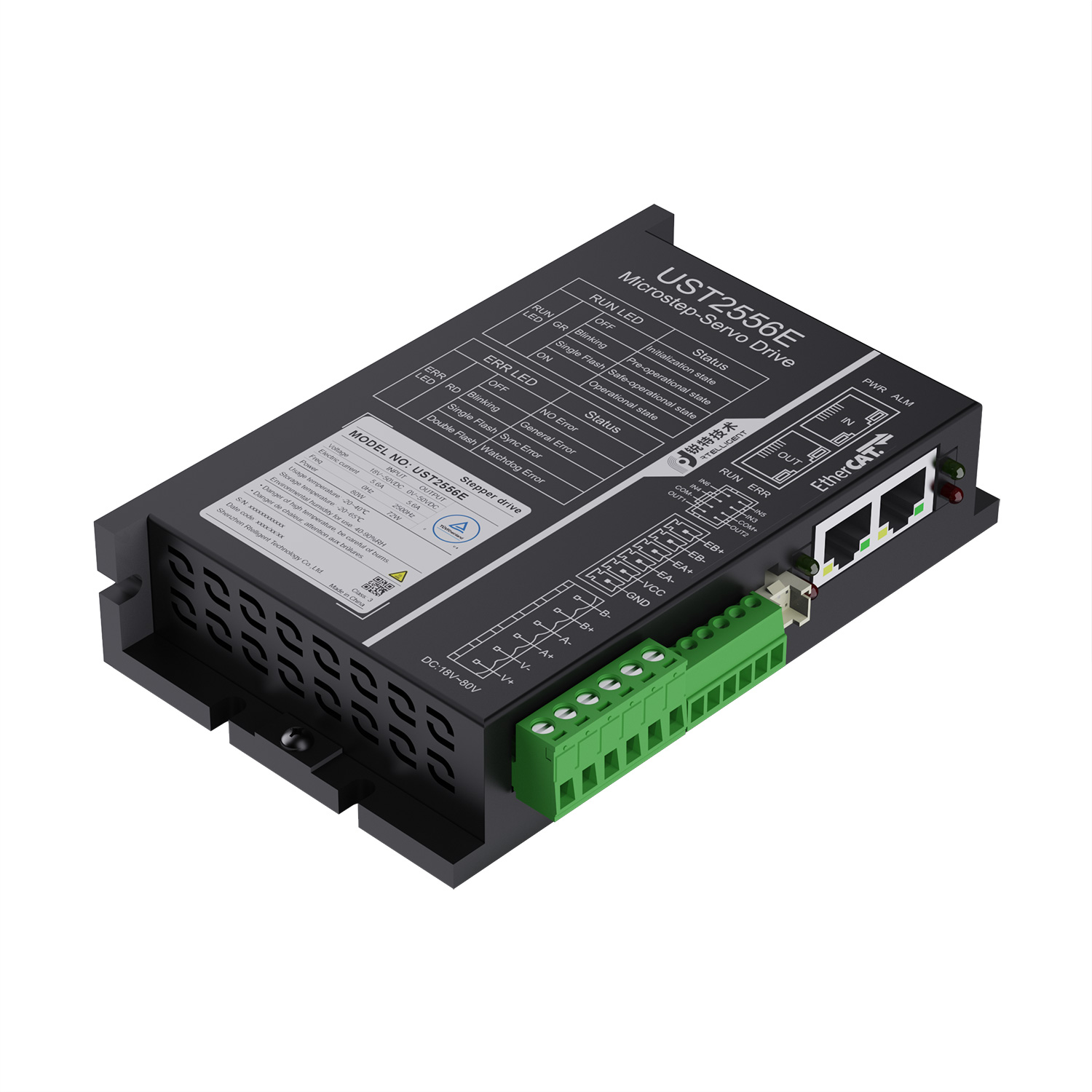

UL Certified Fieldbus Closed loop Stepper Drive UST2556E
Product Introduction

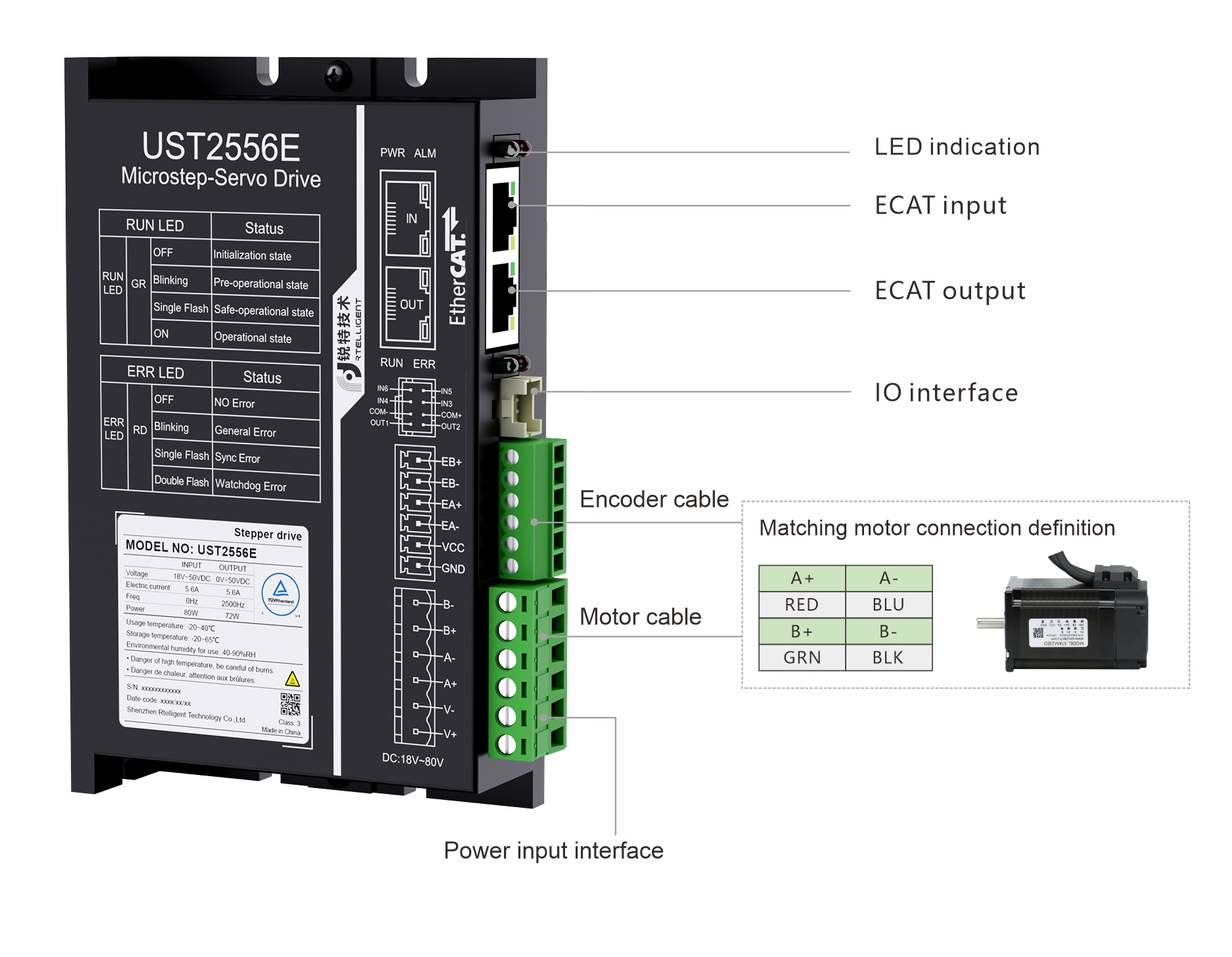

Connection
Product Detail
Key Features:
● The minimum synchronization period is 500us
● Dual port RJ45 connector for EtherCAT communication
● Control methods: open loop control, closed loop control / FOC control
● Motor type: two phase, three phase;
● Digital IO port:
4 optically isolated digital signal inputs: IN1 and IN2 serve as encoder inputs; IN3–IN6 are 24V single ended inputs with common anode wiring.
2 optically isolated digital signal outputs, rated for up to 30V and a maximum sink/source current of 100mA, with common cathode wiring.

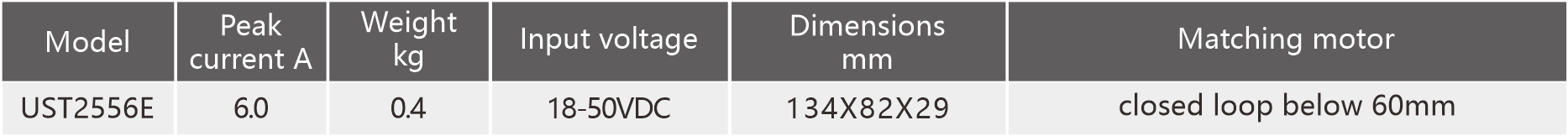

Basic Spec
-
ECTSeriesV202_20220528.xml -
RT_ECMaster230728
-
Rtelligent UST2556E User Manual V204 -
UST2556E-2D
-
UST2556E-3D
