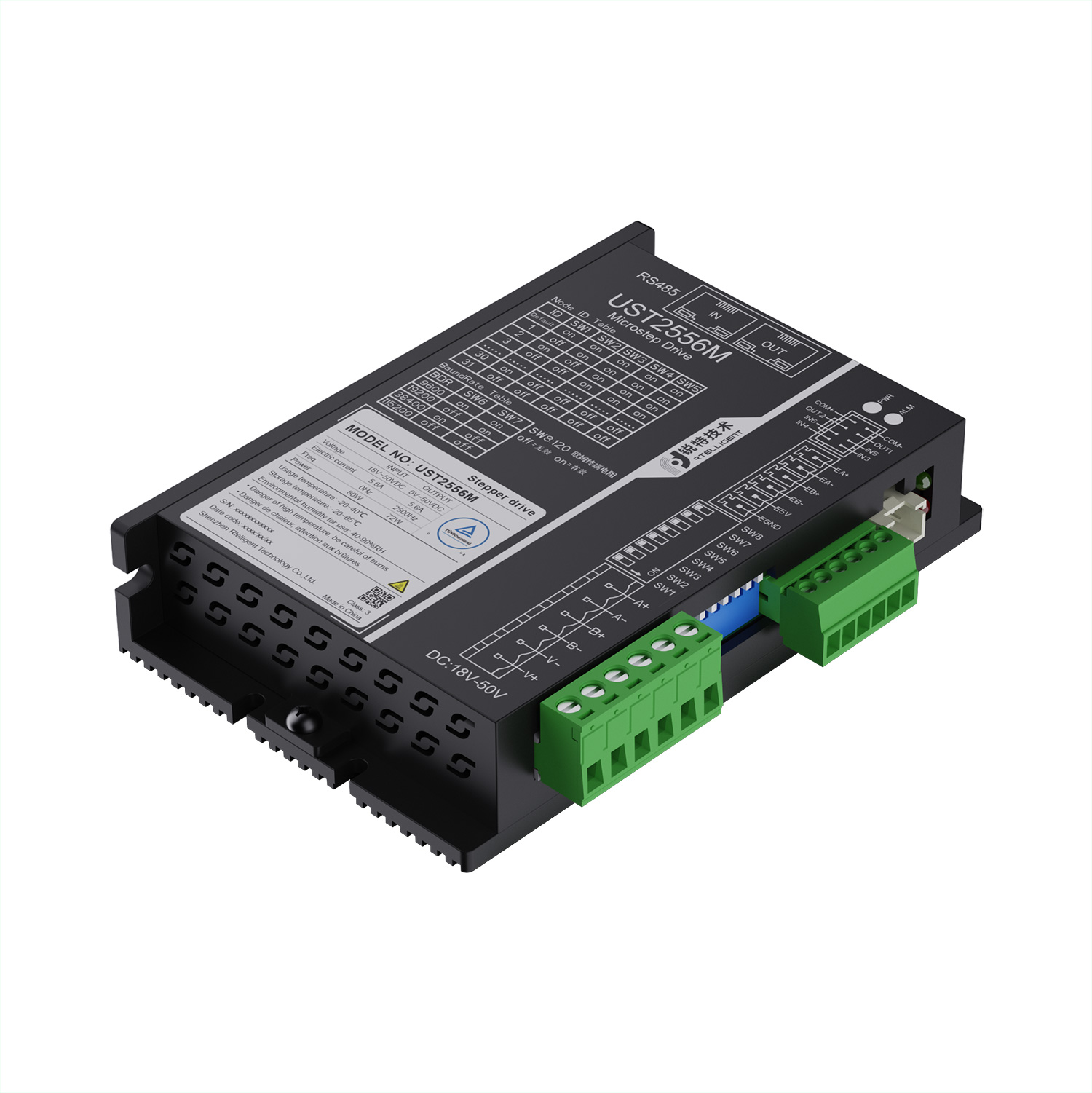

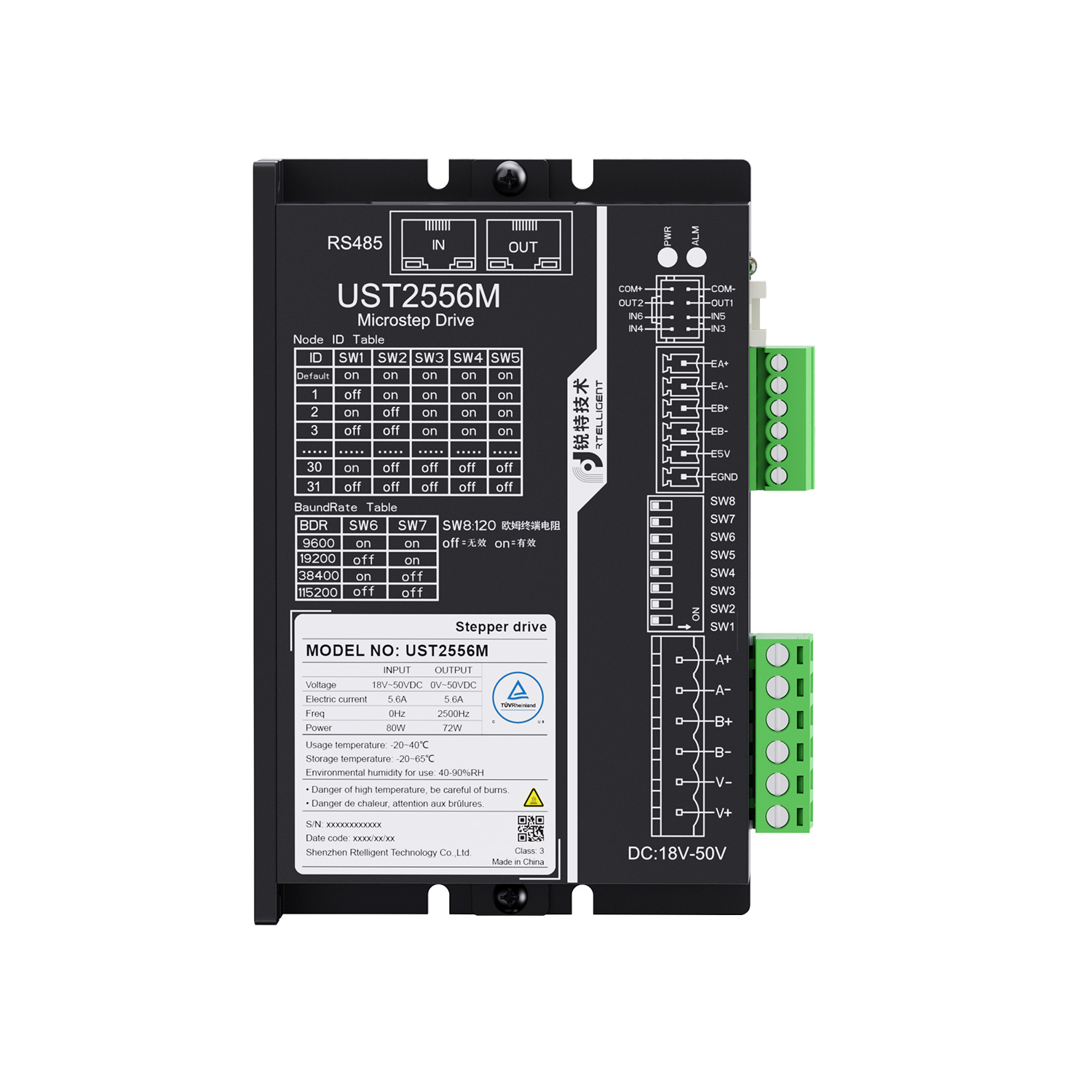

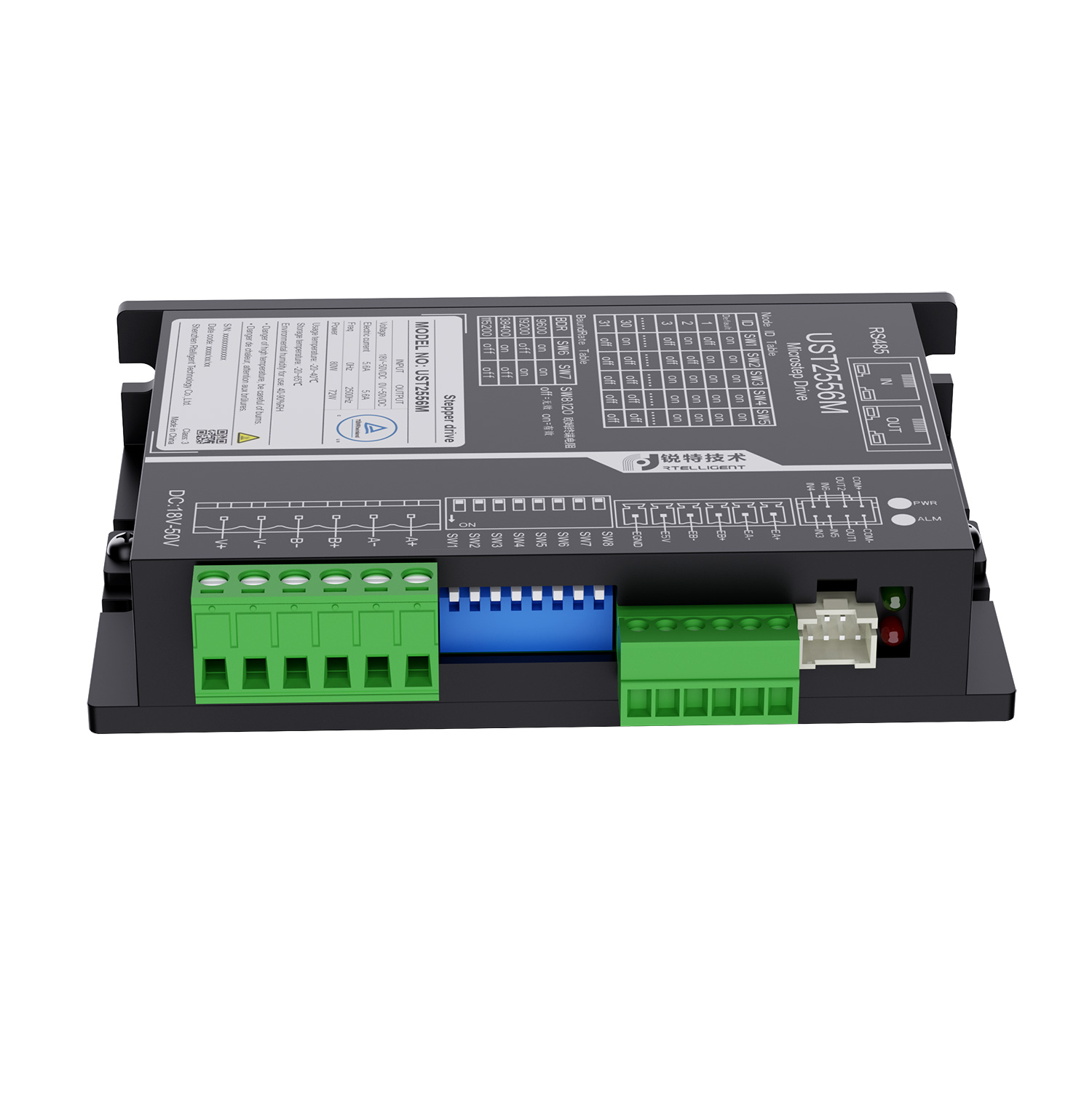

UL Certified Fieldbus Closed Loop Stepper Drive UST2556M

Short Description:

Field bus stepper drive USD2556M is based on RS-485 network to run Modbus RTU protocol. The intelligent motion control

function is integrated, and with external IO control, it can complete functions such as fixed position/fixed speed/multi position/auto-homing

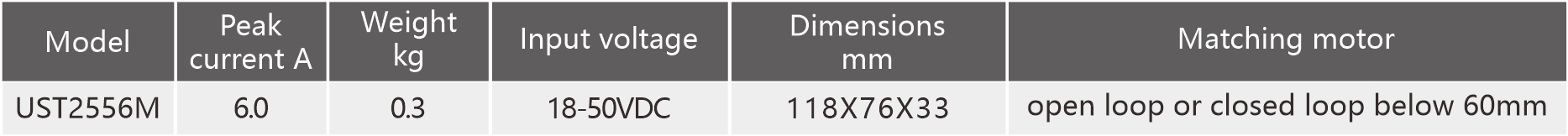

UST2556M matches open loop or closed loop stepper motors below 60mm

● Control mode: fixed length/fixed speed/homing/multi-speed/multi-position

● Debugging software: RTConfigurator (multiplexed RS485 interface)

● Power voltage: 24-50V DC

● Typical applications: single axis electric cylinder, assembly line, connection table, multi-axis positioning platform, etc

Send email to us

Product Detail

Download

Product Tags

Product Introduction

Connection

Product Detail

Key Features:

● Programmable small-size stepper motor drive

● Operating voltage: 24~50VDC

● Control method: Modbus/RTU

● Communication: RS485

● Maximum phase current output: 5A/phase (Peak)

● Digital IO port:

6 optically isolated digital signal inputs: IN1 and IN2 are 5V differential inputs, also configurable as 5V single-ended inputs; IN3–IN6 are 24V single-ended inputs with common-anode wiring.
2 optically isolated digital signal outputs: maximum withstand voltage 30V, maximum input or output current 100mA, with common-cathode wiring.
