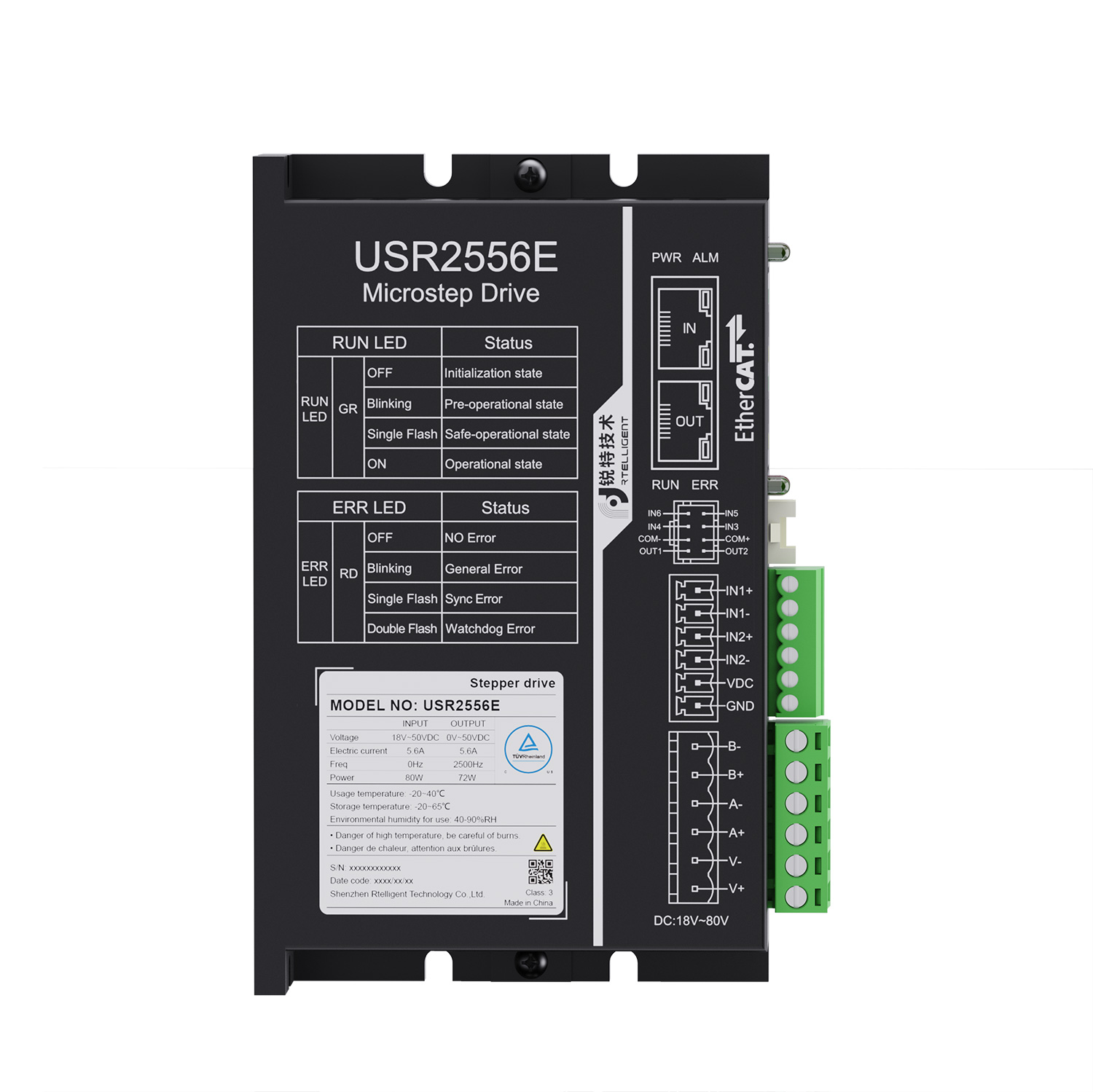

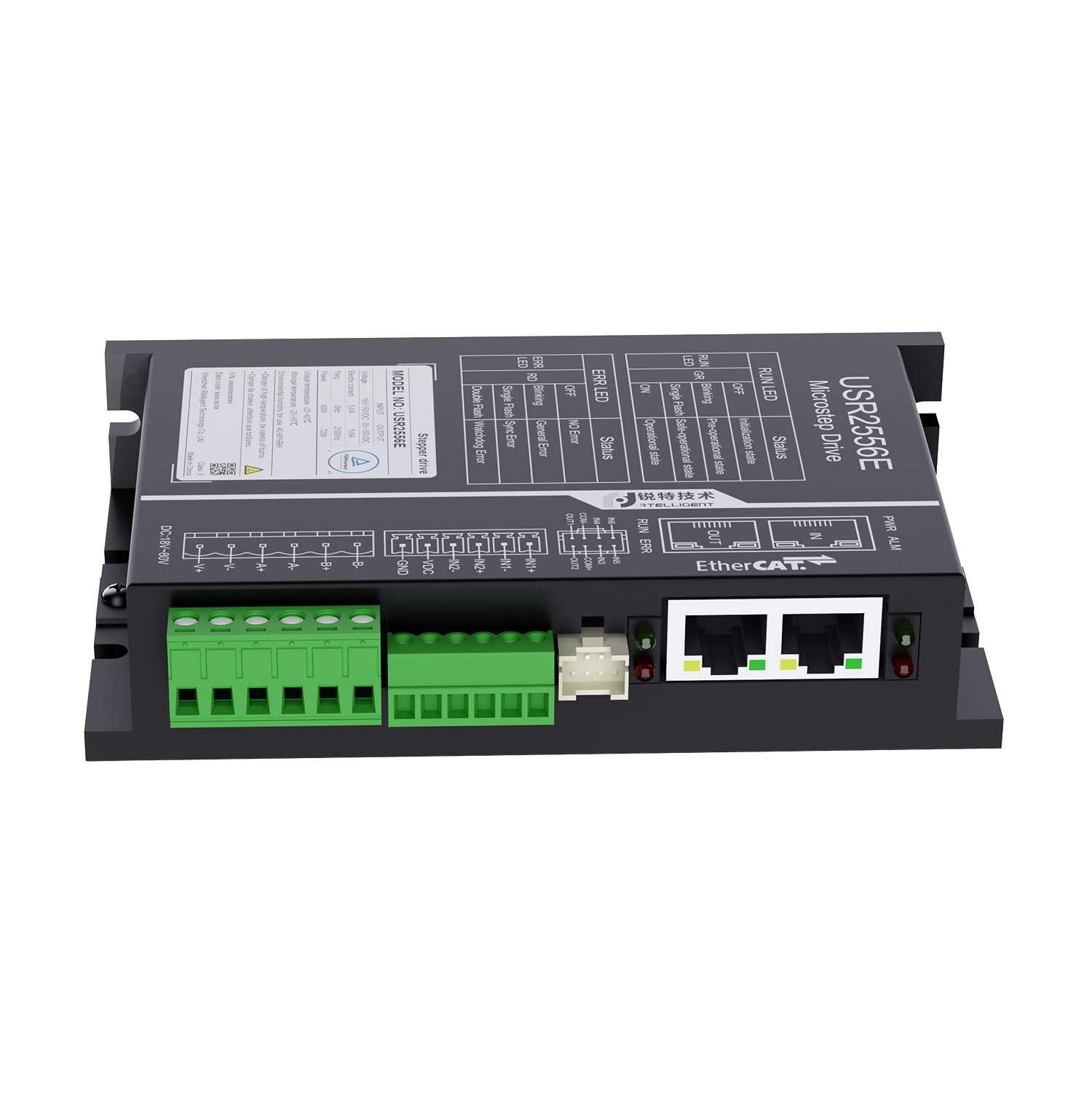

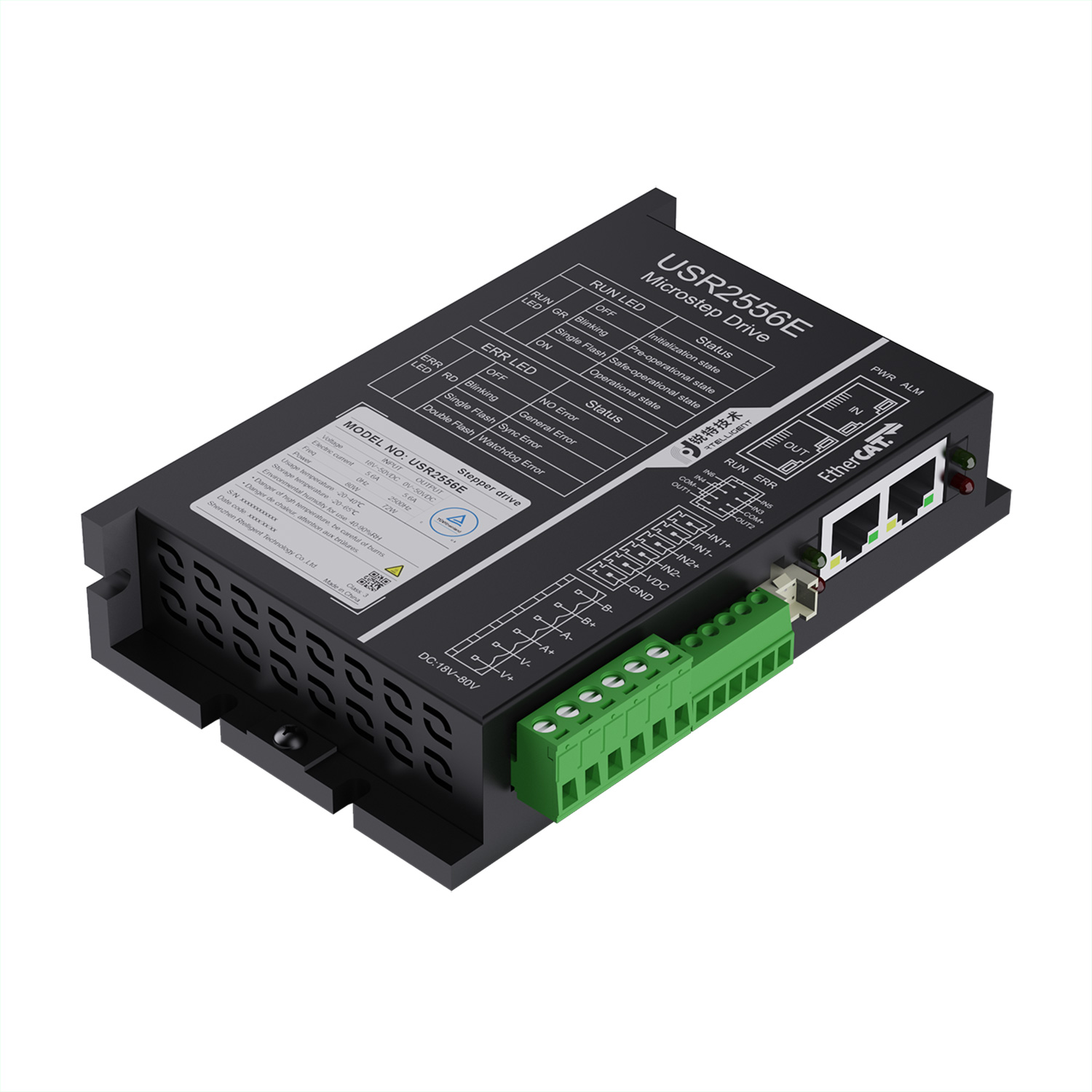

UL Certified Fieldbus Open loop Stepper Drive USR2556E

Short Description:

The EtherCAT fieldbus stepper drive USR2556E is based on the CoE standard framework and complies with the CiA402 standard. The data transmission rate is up to 100Mb/s, and supports various network topologies.

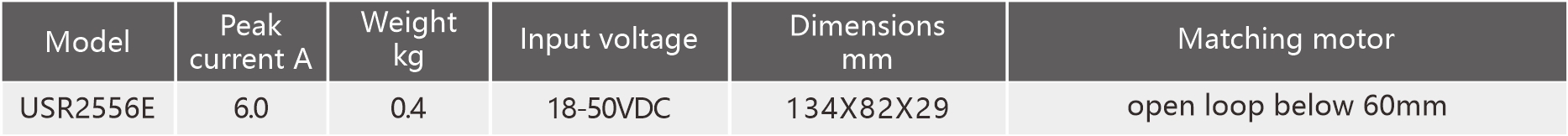

USR2556E matches open loop stepper motors below 60mm.

● Control mode: PP, PV, CSP, Homing mode, etc

● Power supply voltage: 18-80VDC

● Input and output: 2-channel differential inputs/4-channel 24V common anode inputs;

2-channel optocoupler isolated outputs

● Typical applications: assembly lines, lithium battery equipment, solar equipment, 3C electronic equipment, etc

Send email to us

Product Detail

Download

Product Tags

Product Introduction

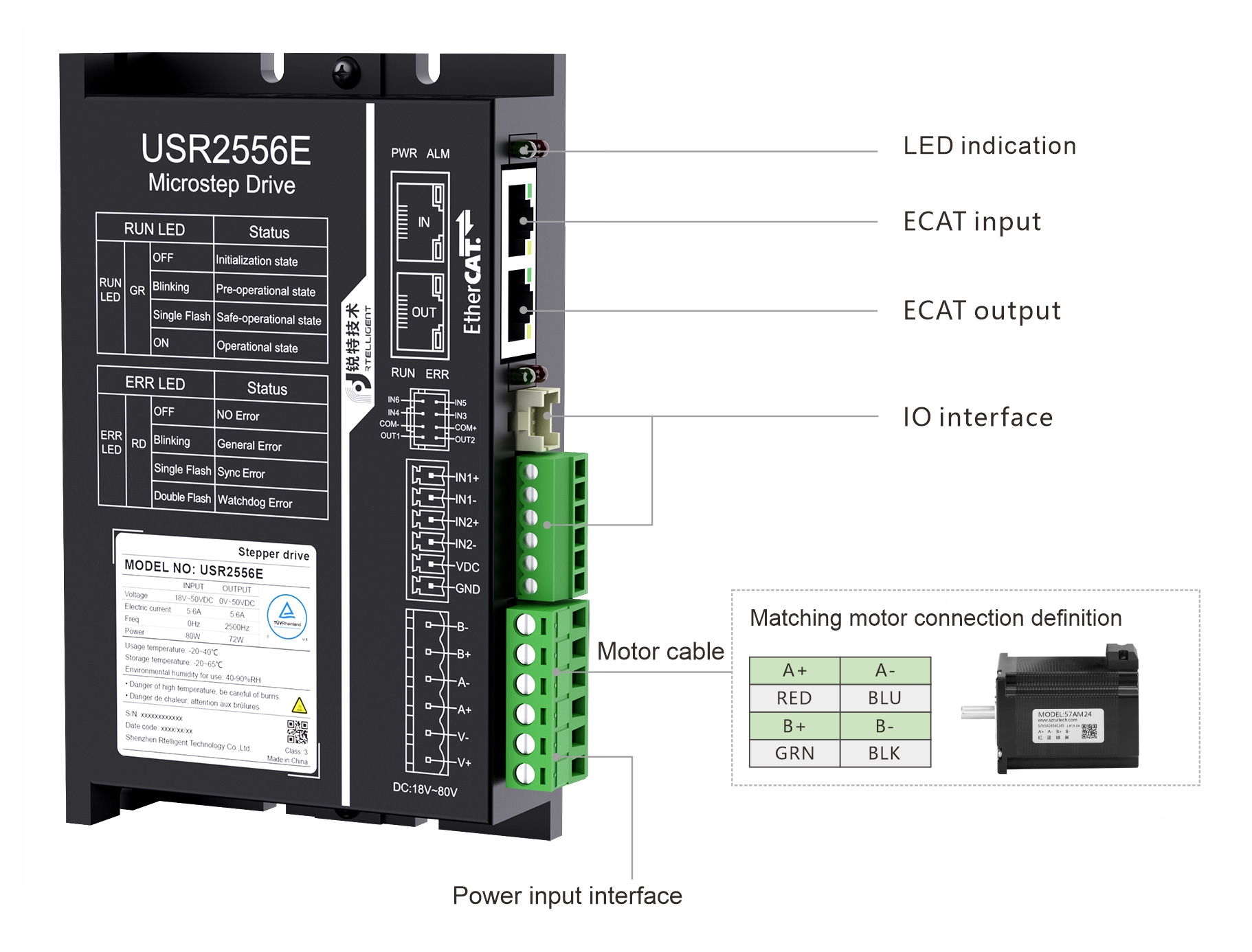

Connection

Product Detail

Key Features:

● The minimum synchronization period is 500us

● Dual port RJ45 connector for EtherCAT communication

● Control methods: open loop control, closed loop control / FOC control

● Motor type: two phase, three phase;

● Digital I/O Ports:
6 optically isolated digital signal inputs: IN1 and IN2 are 5V differential inputs, also configurable as 5V single-ended inputs; IN3–IN6 are 24V single-ended inputs with common-anode connection.
2 optically isolated digital signal outputs: maximum withstand voltage 30V, maximum sink or source current 100mA, with common-cathode connection.
