Integrated Servo Drive Motor IDV50

Short Description:

IDV series is an integrated universal low-voltage servo developed by Rtelligent. With position/speed/torque control mode, equipped with 485 communication interface, The innovative servo drive and motor integration significantly simplifies the electrical machine topology, minimizes cabling and wiring, and eliminates EMI induced by long cabling. It also improves encoder noise immunity and reduces the size of the electrical cabinet by at least 30%, to achieve the compact, intelligent, and smooth operating solutions for AGVs, medical equipment, printing machines, etc.

Send email to us

Product Detail

Download

Product Tags

Key Features

Working voltage: DC input voltage 24VDC, the recommended working voltage is the rated voltage of the motor.
Features 24V open-collector pulse control input.
Built-in position command smoothing and filtering function, more stable operation, equipment operation noise significantly reduced.
Adopt FOC magnetic field positioning technology and SVPWM technology.
Built-in 17-bit high resolution magnetic encoder.
Multiple position/speed/moment command application modes.

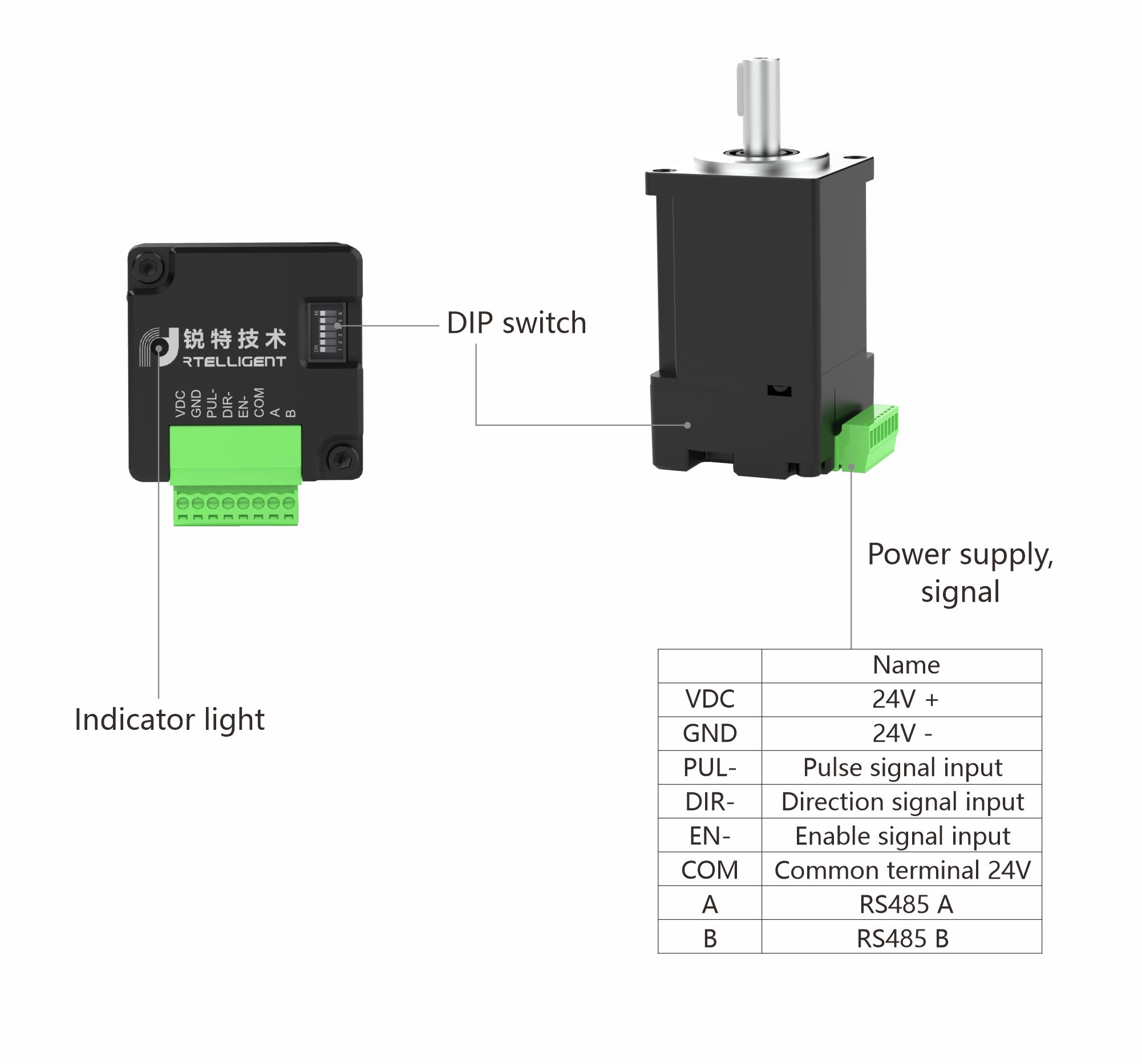

3 digital input interfaces and 1 digital output interface with configurable functions.

Integrated Motors are made with high performance drives and motors, and deliver high power in a compact high quality package that can help machine builders cut down on mounting space and cables, increase reliability, eliminate motor wiring time, save labor costs, at a lower system cost.
