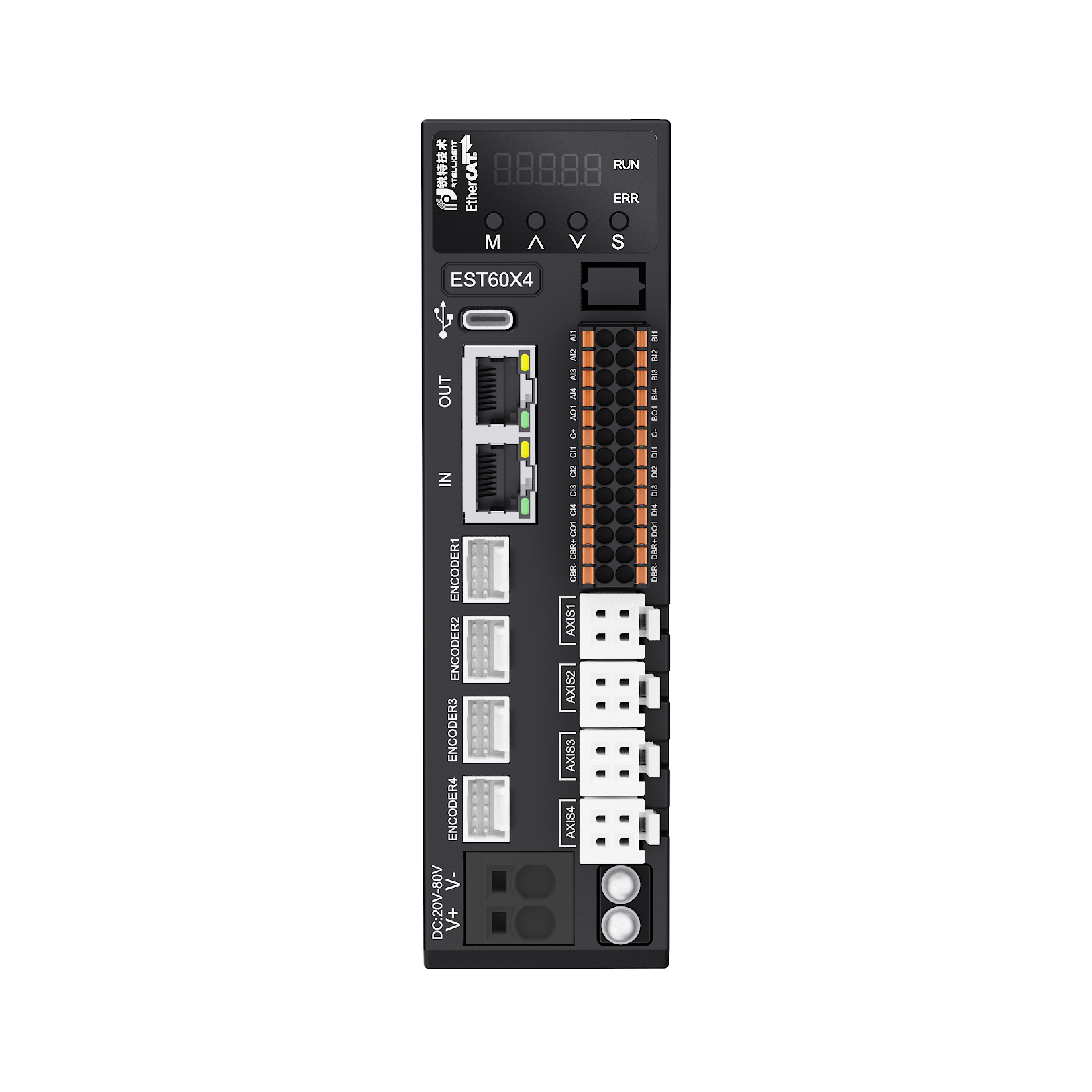

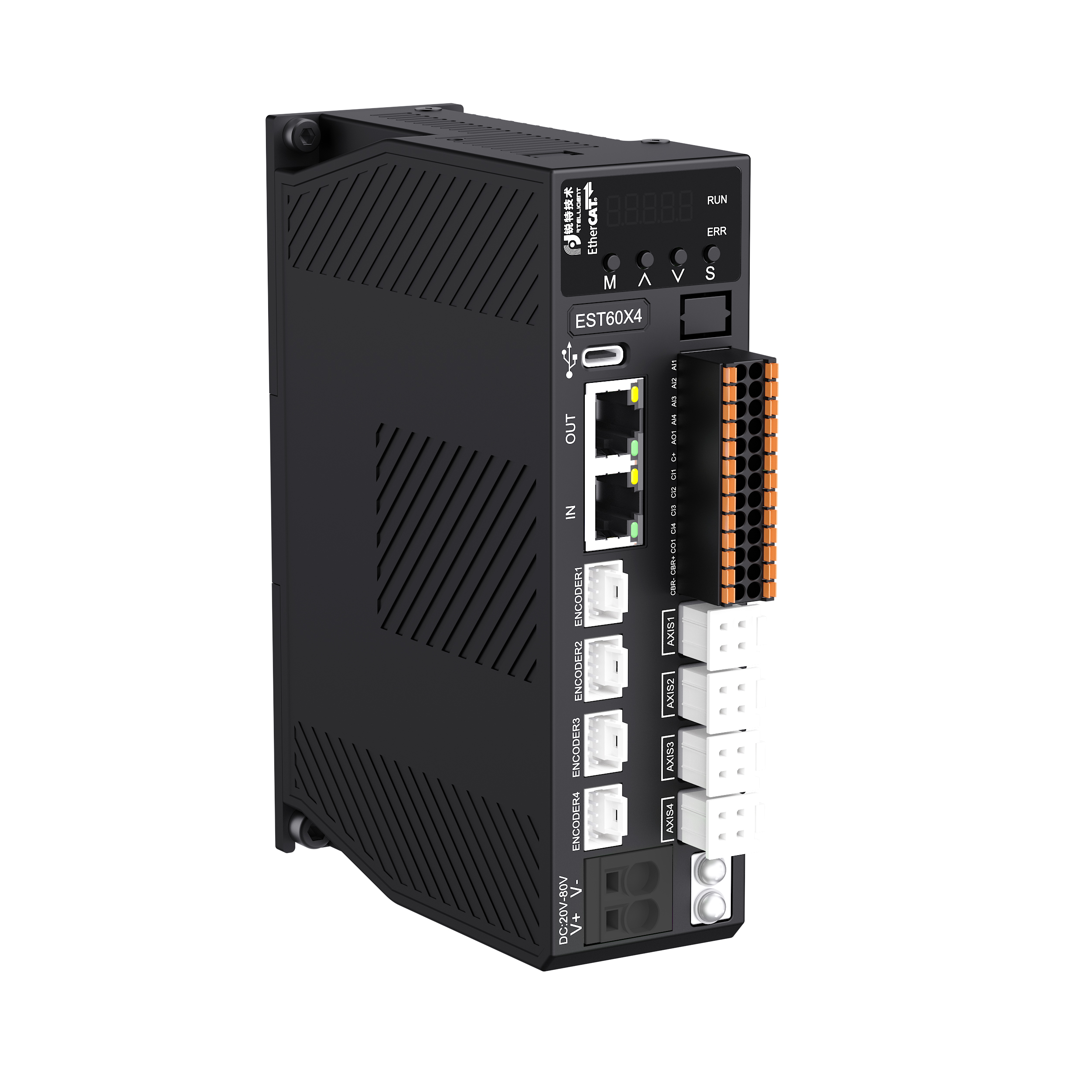

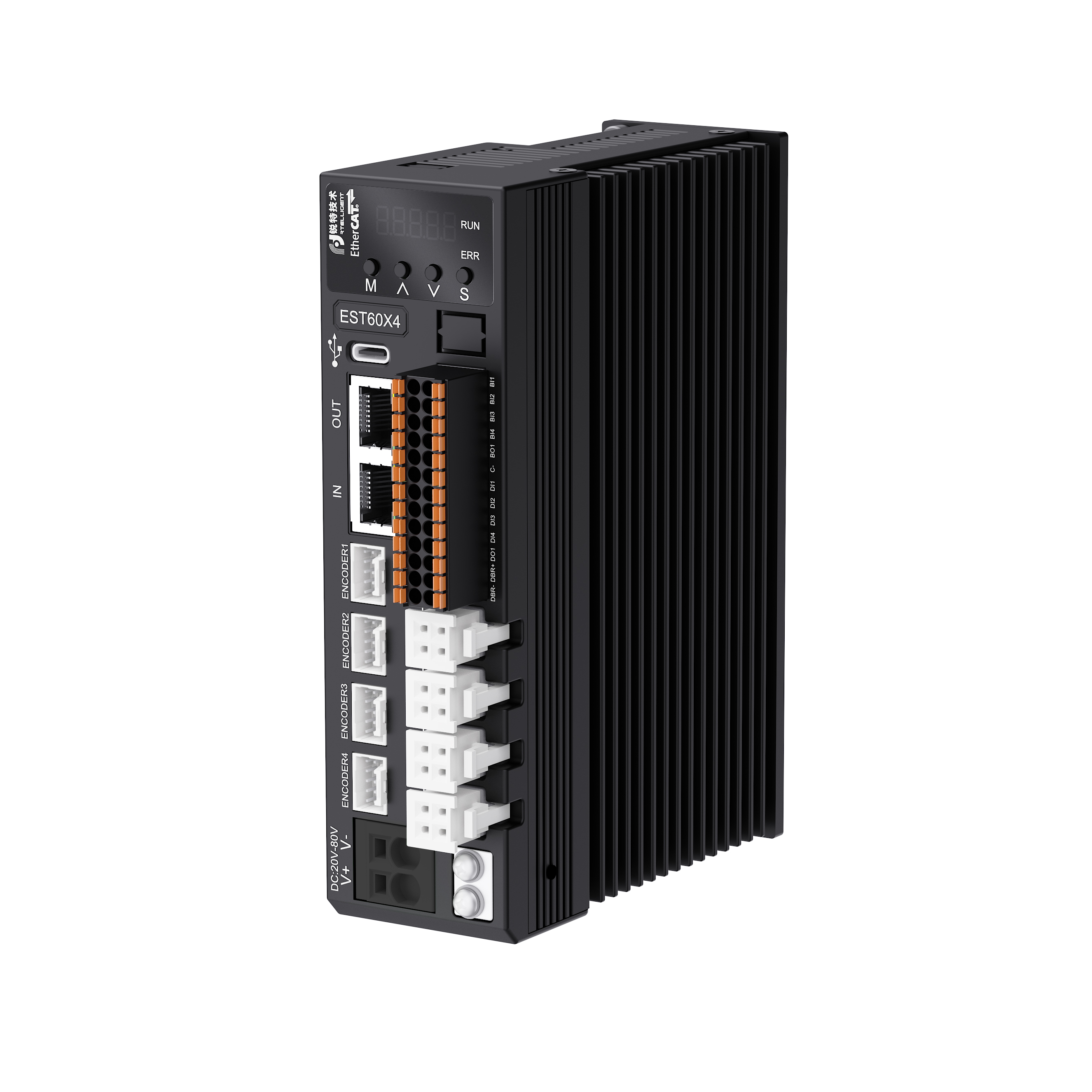

Latest Four-axis field bus type closed loop stepper drive EST60X4

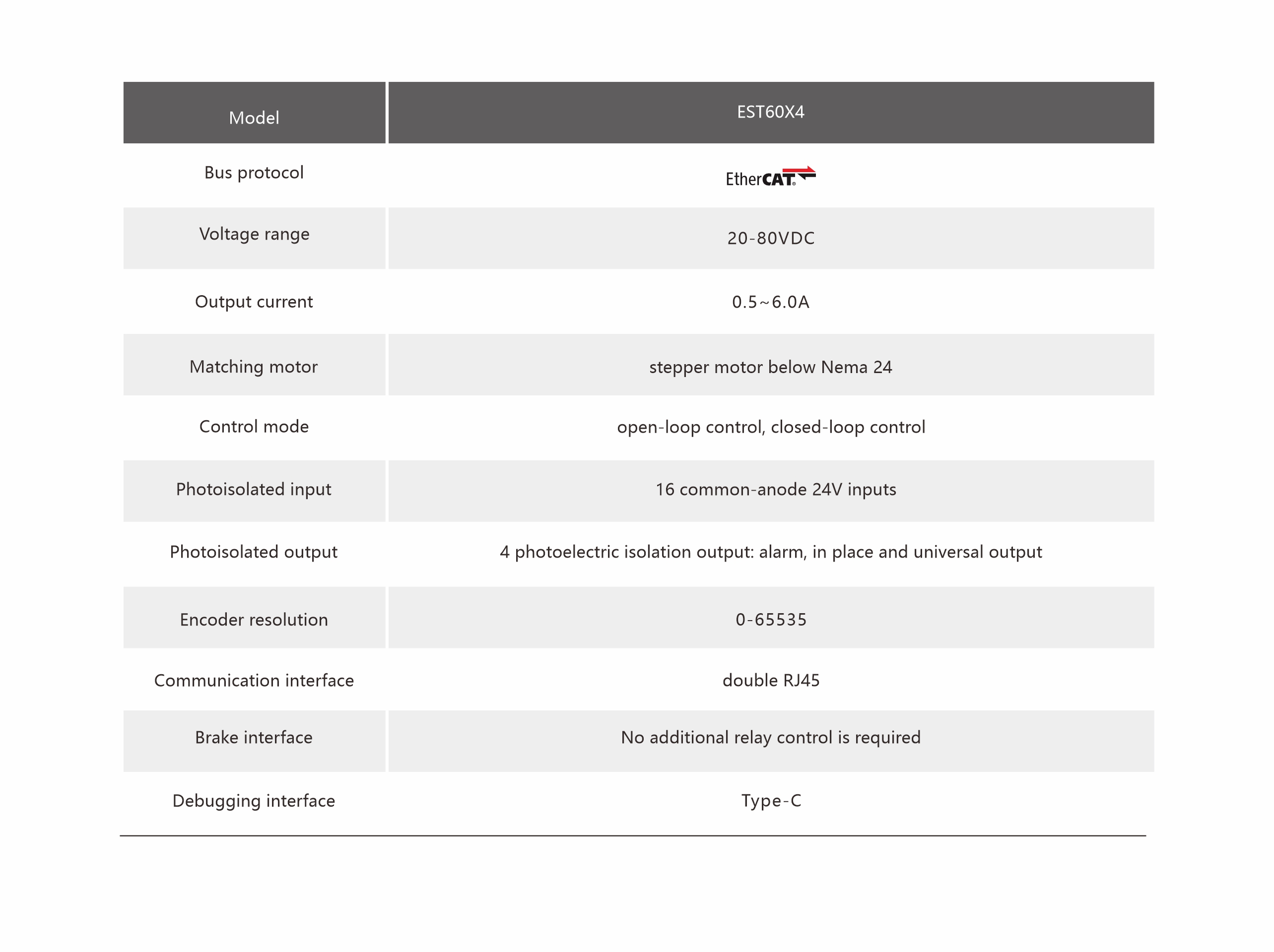

The EST60X4 combines 4-axis stepper motor control with EtherCAT bus communication and an integrated intelligent motion controller, delivering a compact and efficient solution for multi-axis motion applications. With support for CSP, CSV, PP, PV, and Homing modes, it adapts flexibly to a wide range of positioning and speed control requirements. A minimum synchronization cycle of 100 µs ensures precise, deterministic multi-axis coordination, while the built-in 5-digit digital display simplifies commissioning and on-site diagnostics. Both open-loop and closed-loop control are supported, along with 2-phase and 3-phase stepper motors up to 60 mm in frame size — making the EST60X4 an ideal choice for compact, high-performance multi-axis motion systems.
