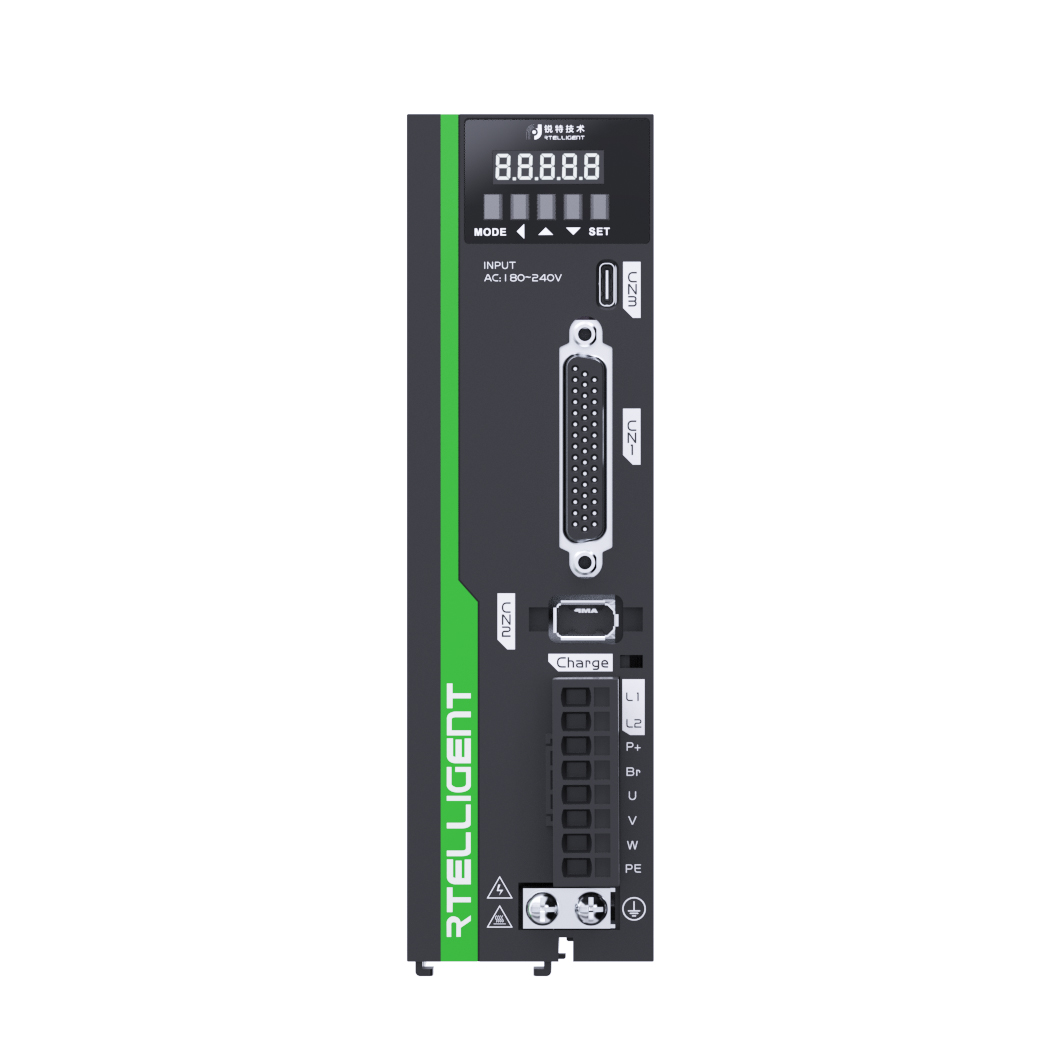

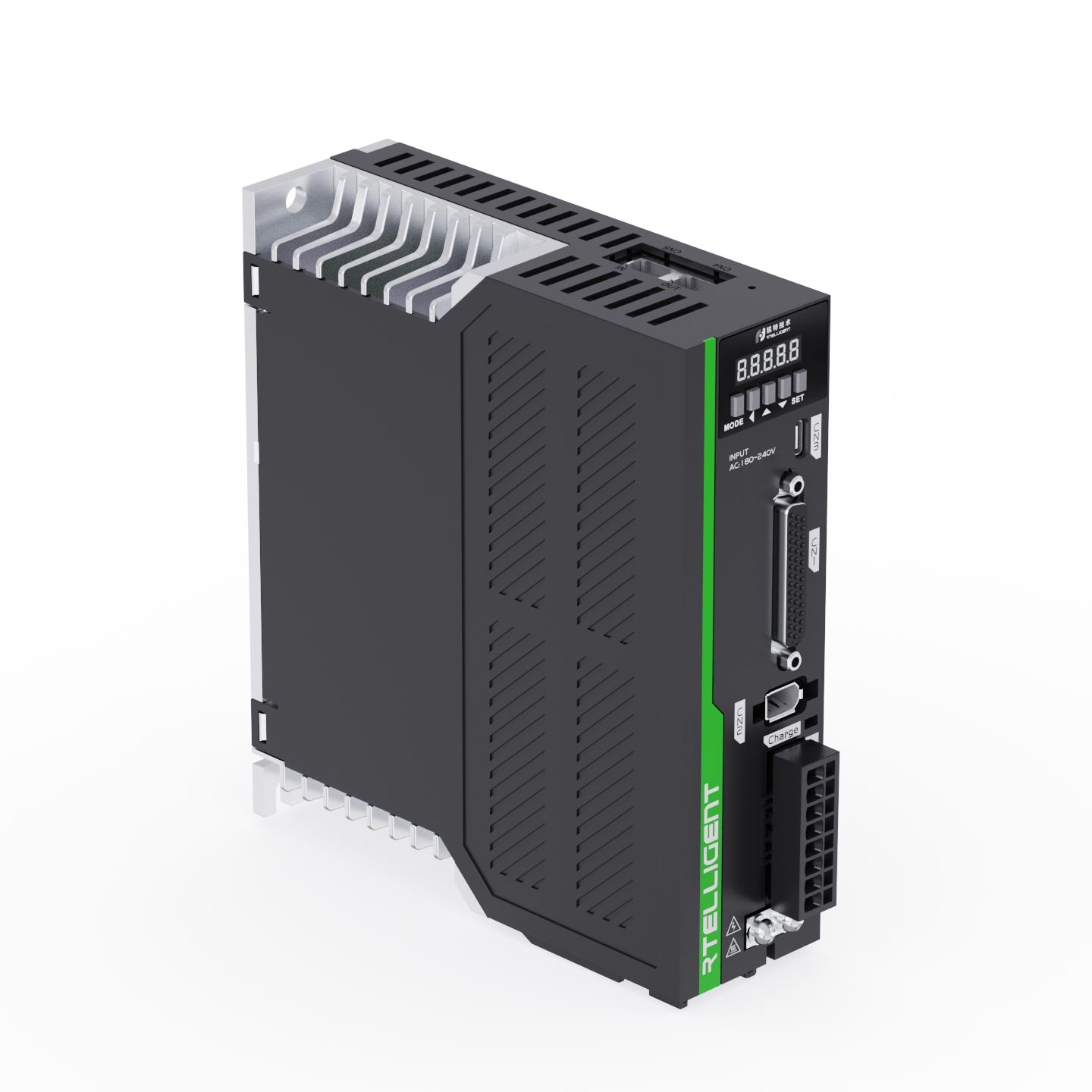

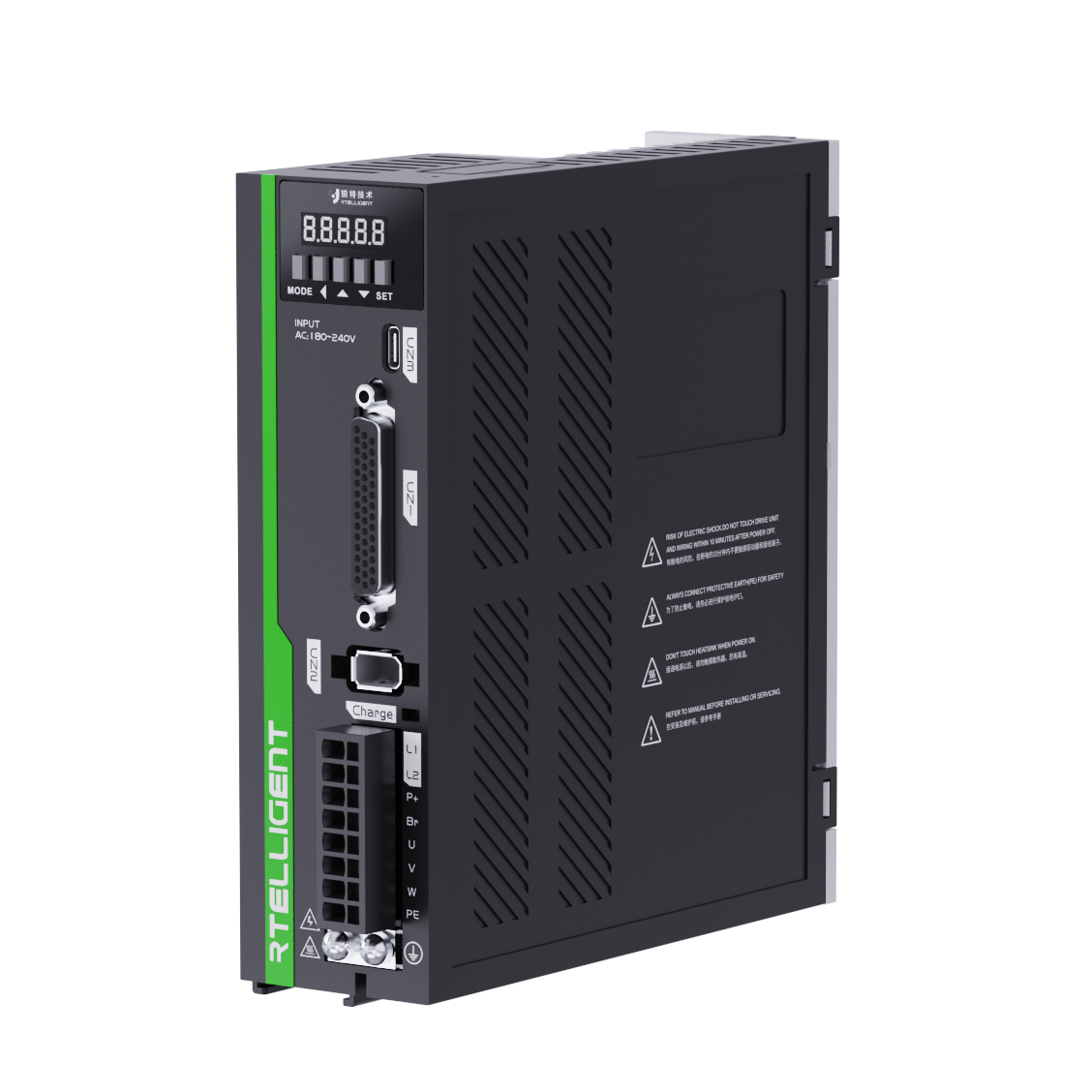

New 6th Gen. of Economical AC Servo Drive Pulse Series S6L076M

Short Description:

The Rtelligent S6L Series represents our economical line of servo drives, engineered to deliver reliable performance across a broad power spectrum from 50W to 2kW . It supports Modbus communication protocol in addition to pulse + direction input control. Equipped with three fundamental control modes—position, speed, and torque control—the S6L Series adapts flexibly to diverse operational environments and application demands. While designing this AC servo drive series with cost concerns in mind, S6L Series is Ideal for small to mid-scale automation projects where reliability, flexibility, and high cost effective are paramount.

Send email to us

Product Detail

Download

Product Tags

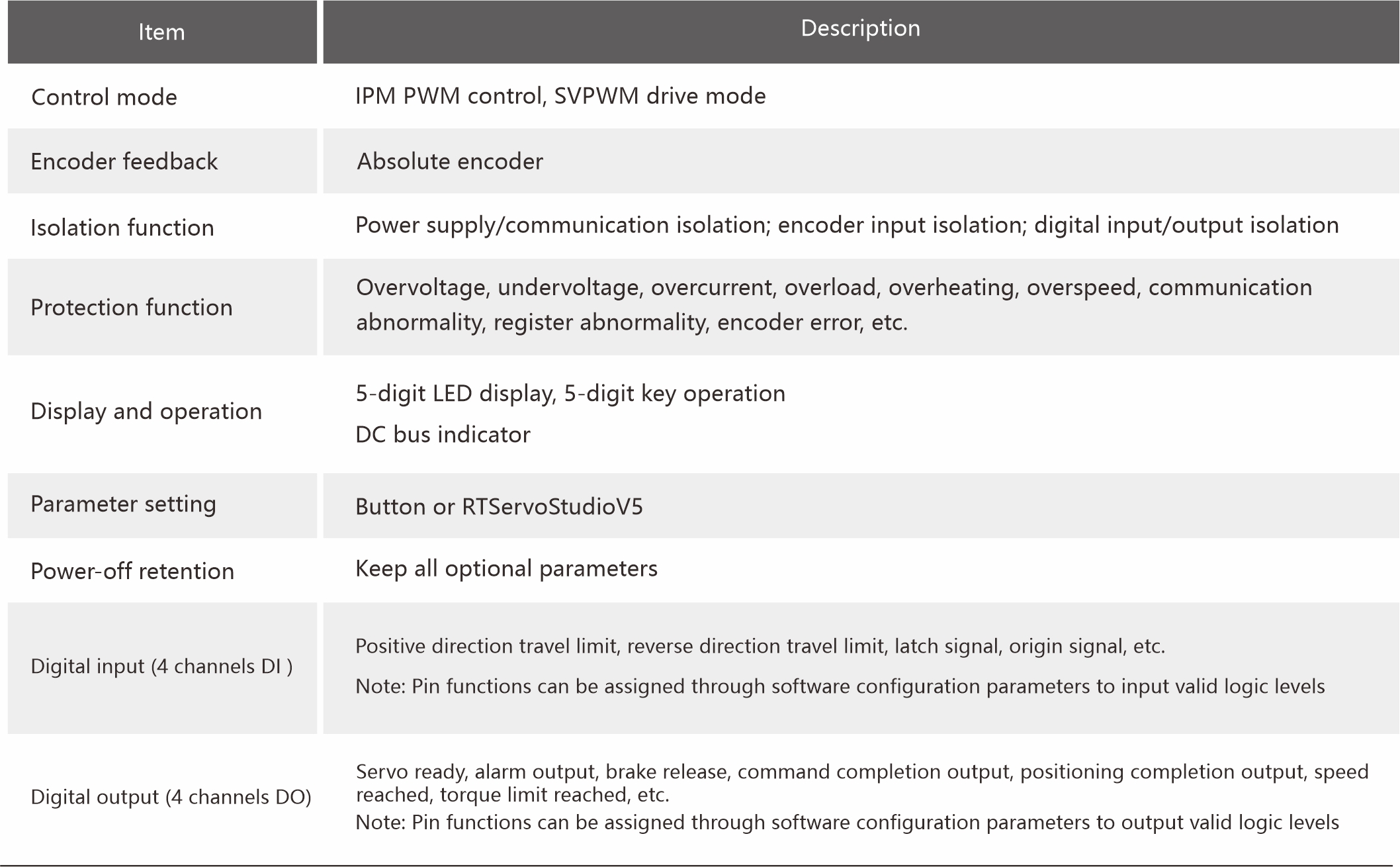

Key Features & Benefits

Type-C Configuration Port : Enables quick connectivity for easy setup and debugging.
Quadrature Pulse Input : Provides precise motion control compatibility with standard pulse train signals.
Optional RS485 Communication
Optional Brake Relay : Enhances safety and control in applications requiring motor braking.
Supports two analog input channels for speed or torque control.
Supports frequency division output of A/B/Z phase signals (both differential and open-collector are supported).
8 DI inputs, 5 DO outputs.
High Cost-Effectiveness
Compatible with motors rated from 50W to 2000W.
