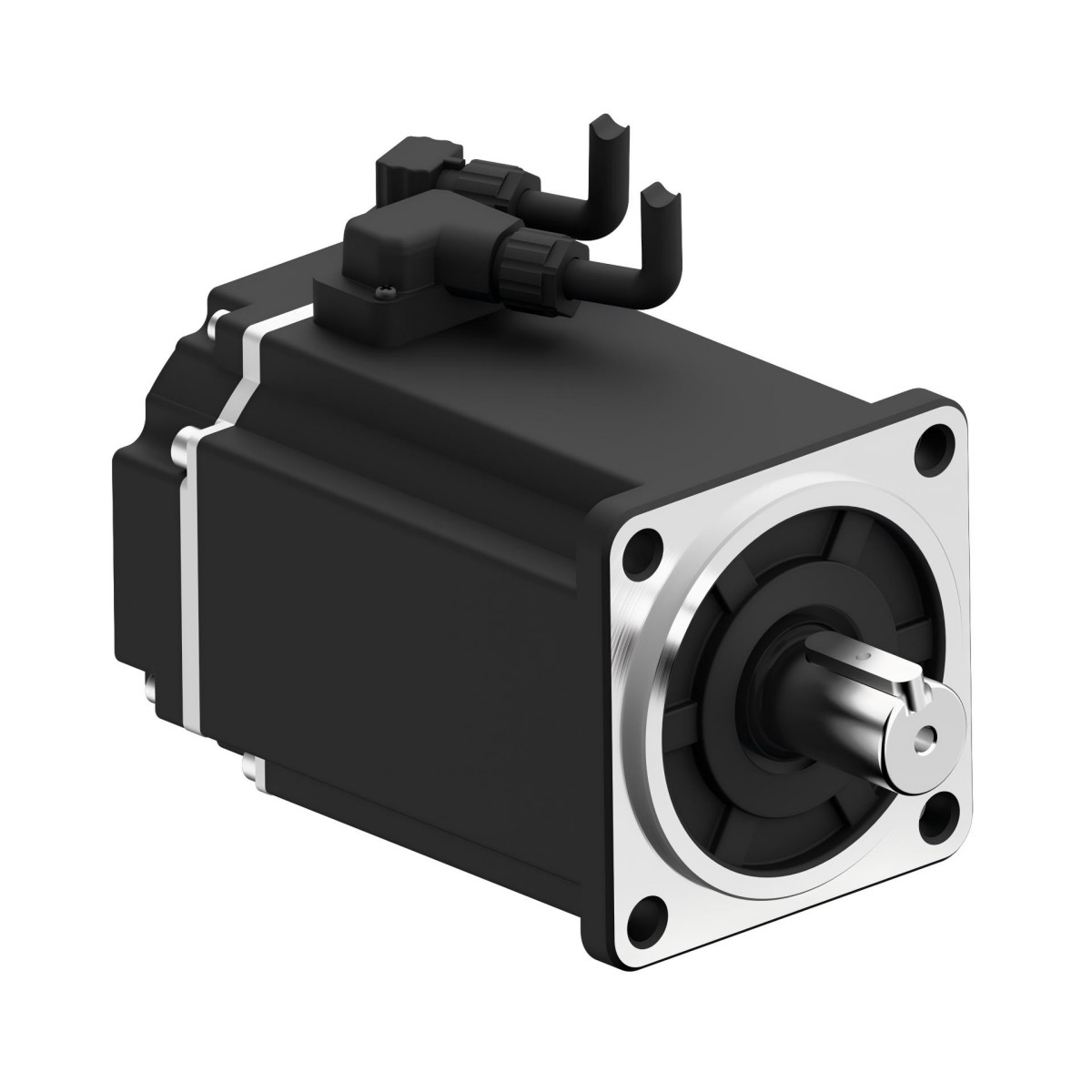

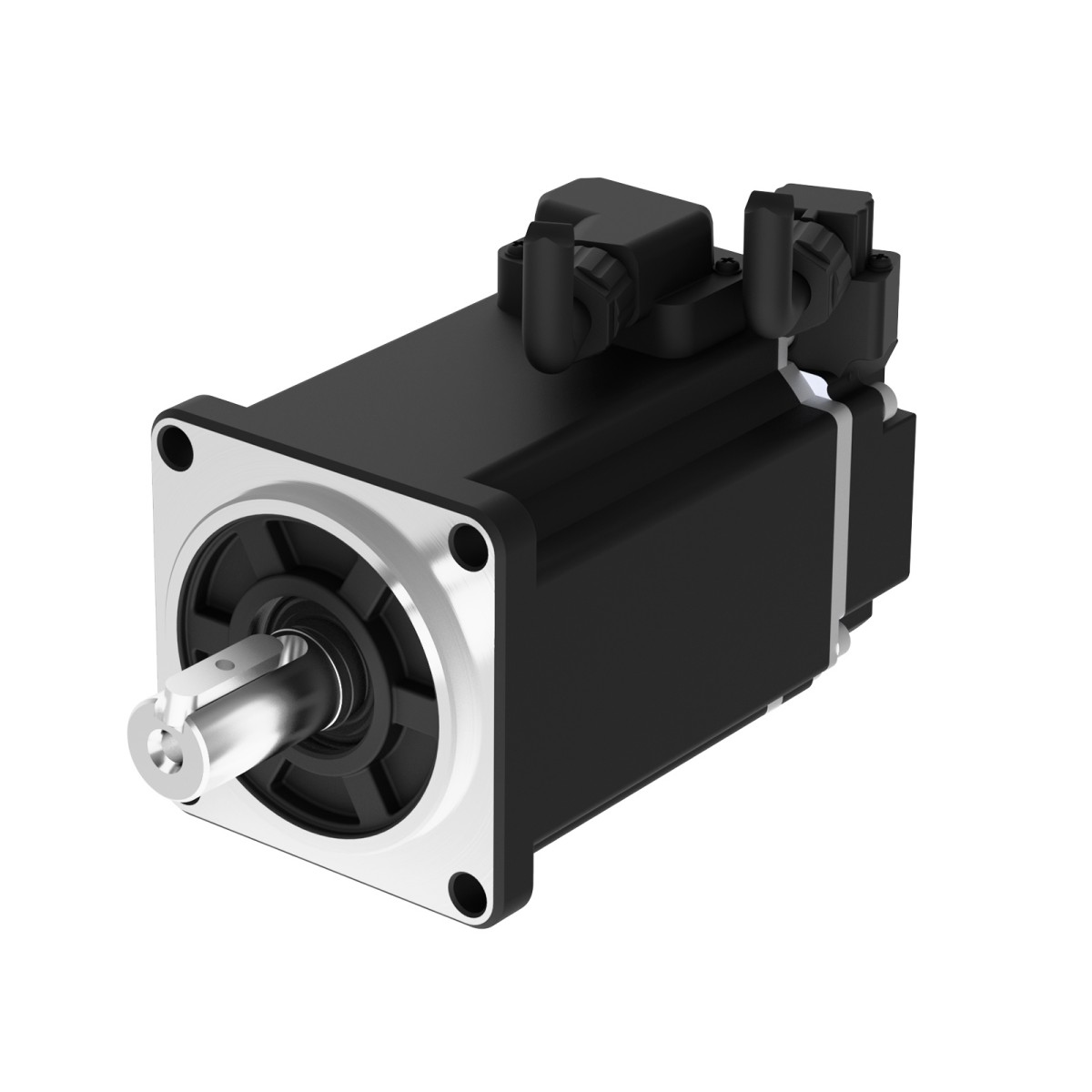

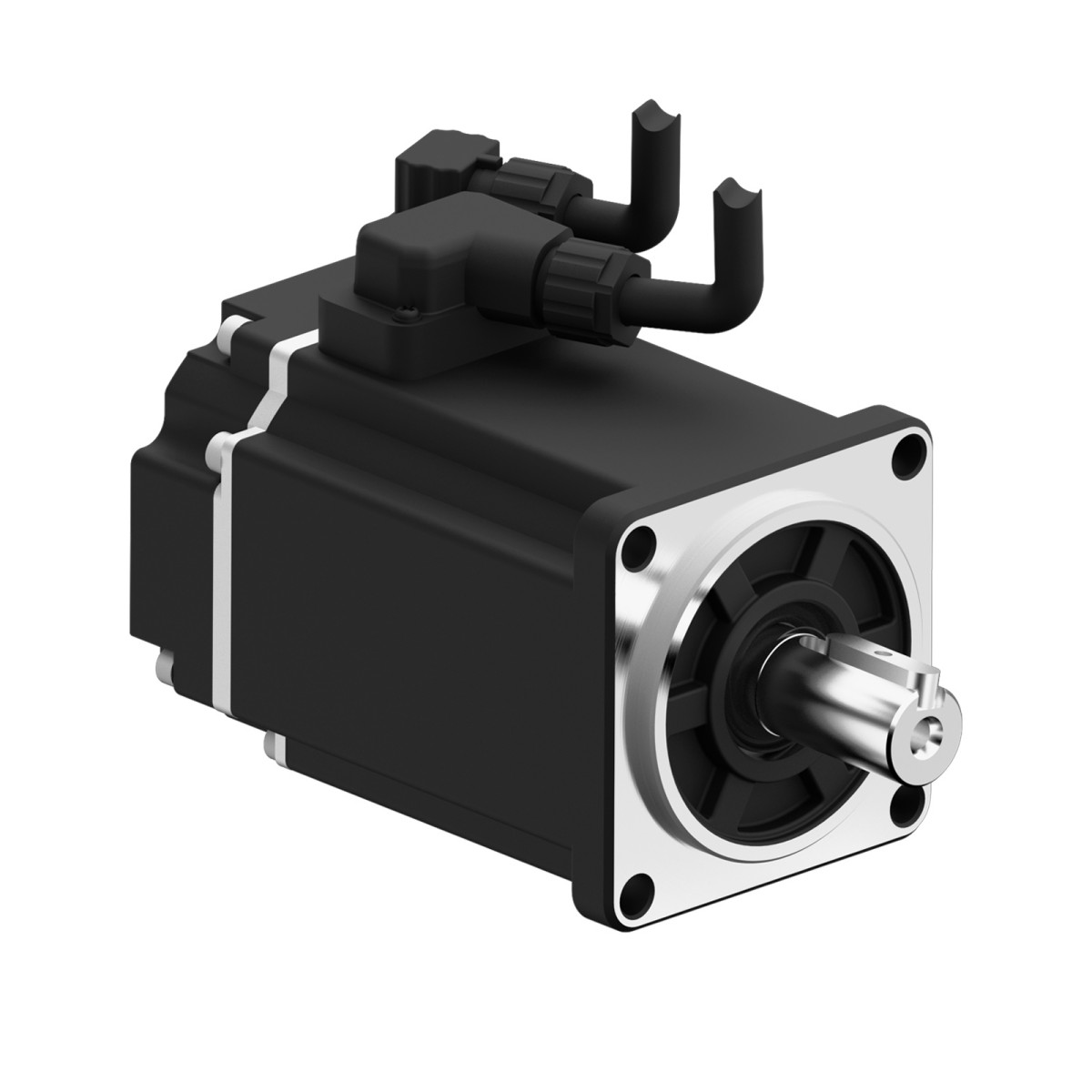

AC SERVO MOTOR RSHA SERIES

The AC servo motors are designed by Rtelligent,optimized magnetic circuit design based on Smd，The servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption. ,Permanent magnet brake optional, sensitive action, suitable for Z-axis application environment.

● Rated voltage 220VAC
● Rated power 200W~1KW
● Frame size 60mm /80mm
● 17-bit magnetic encoder / 23-bit optical abs encoder
● Lower noise and lower temperature rise
● Strong overload capacity up to 3 times at most
